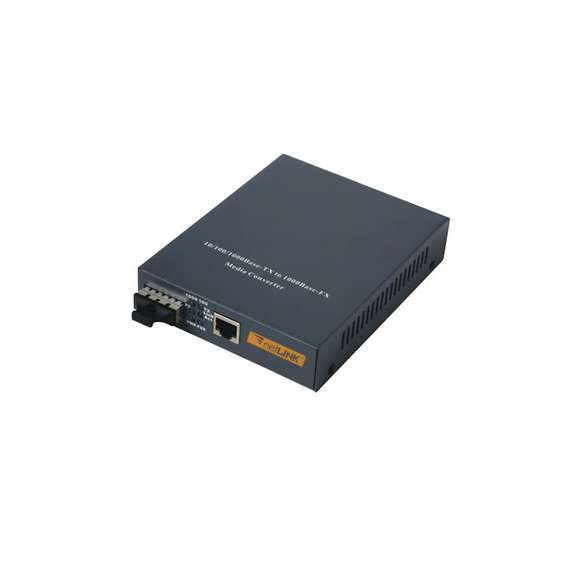

NetLink HTB-GS-03 Gigabit Single-mode Fiber Optic Ethernet Media Converter
![Buy NetLink HTB-GS-03 Gigabit Single-mode Fiber Optic Ethernet Media Converter in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/101/netLINK_HTB-GS-03_Media_Converter.jpg.jpg "Buy NetLink HTB-GS-03 Gigabit Single-mode Fiber Optic Ethernet Media Converter in [storefront]"){kind=small}
![Buy NetLink HTB-GS-03 Gigabit Single-mode Fiber Optic Ethernet Media Converter in [storefront]](images/detailed/101/netLINK_HTB-GS-03_Media_Converter.jpg "Buy NetLink HTB-GS-03 Gigabit Single-mode Fiber Optic Ethernet Media Converter in [storefront]")
HTB-GS-03
Please sign in so that we can notify you about a reply
Feature
- Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
- UTP port supports MDI / MDI-X auto crossover.
- Supporting the max 1536 byte Ethernet packet
- Supporting flow control
- Adopting internal power supply
Specification
- Operating standards: IEEE802.3z/AB 1000Base-T, 1000Base-SX/LX
- MAC address table:4K
- Data Buffer:256K
- Connector:
- UTP: RJ-45, 10/100/1000Mbps
- Fiber: SC,1000Mbps
- Cable:
- UTP: Cat 5e or Cat 6 (the max distance up to 100m)
- Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m)
- Fiber (singlemode): 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)
- Flow Control
- Full Duplex: IEEE802.3x flow control
- Half Duplex: back pressure flow control
- Power: AC110-240V to DC5V; DC 48V to DC5V.
- Ambient temperature: 0 ~ 50 ℃
- Storage temperature: -40 ~ 70 ℃
- Humidity: 5% ~ 90>#/li###
- Dimensions: 40 (high) x 110 (width) x 140 (length) mm
Condition
- New
Device Mode
- Singlemode (SM)
Warranty Issuer
- Manufacturer
