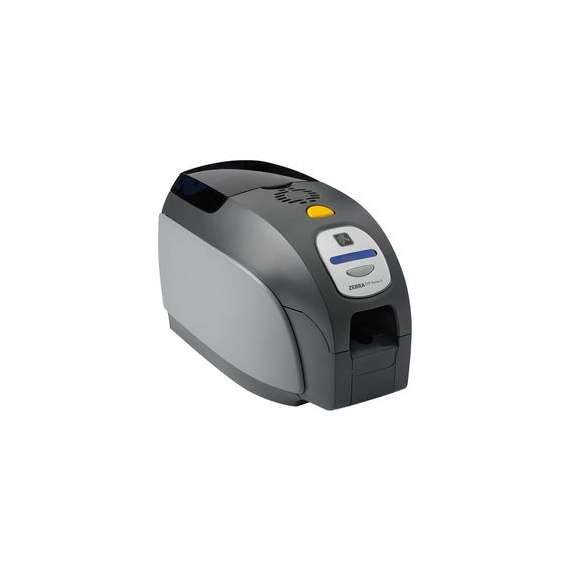

Zebra ZXP Series 3 Dual Sided Printer

Overview

Print Touch
The ZXP Series 3 includes Zebra® Print Touch™, an embedded Near Field Communication (NFC) chip and software. Just hold your NFC enabled smartphone up to the Zebra Print Touch logo on the printer to read key printer information and launch web-based help pages. Genuine Zebra Supplies Genuine Zebra supplies meet stringent quality standards and are recommended for optimal printing quality and proper printer performance. CardStudio Software Zebra’s CardStudio™ is an easy-to-learn, easy-to-operate complete card design and card issuance software suite. It makes designing and printing high quality photo ID cards and other cards easy, with basic to advanced features, and support for all Zebra card printers.

Genuine Zebra Supplies
Genuine Zebra supplies meet stringent quality standards and are recommended for optimal printing quality and proper printer performance.

CardStudio Software
Zebra’s CardStudio™ is an easy-to-learn, easy-to-operate complete card design and card issuance software suite. It makes designing and printing high quality photo ID cards and other cards easy, with basic to advanced features, and support for all Zebra card printers. For more information, visit www.zebra.com/cardstudio

Specification

True Colours® ix Series™ ZXP 3 high-performance ribbons with intelligent media technology
High capacity, eco-friendly Load-N-Go™ drop-in ribbon cartridges
ZRaster™ host-based image processing
Auto calibration of ribbon
USB connectivity
Microsoft® Certified Windows® drivers
Print Touch NFC tag for online printer documentation and tools
100 card covered feeder (30 mil)
45 card capacity output hopper (30 mil)
16-character LCD operator control display
300 dpi (11.8 dots/mm) print resolution
Two-year warranty on printer
Two-year (unlimited passes) original printhead
One-year hot swap (U.S. only)
Kensington® secure lock slot

PRINTING SPECIFICATIONS
Dye-sublimation thermal transfer direct to card
Full color or monochrome printing
Single- or dual-sided printing
700 cards / hour monochrome single-sided
195 cards / hour single-sided YMCKO
140 cards / hour dual-sided YMCKOK
Edge-to-edge printing on standard CR-80 media

MEDIA SPECIFICATIONS

NOTE: The ZXP Series 3 printer is designed to work only with Zebra True Colours ix Series high-performance ribbons
Zebra intelligent technology automatically detects and authenticates ribbon
Integrated cleaning roller included with each ribbon
Media Starter Kit (single-sided): 1 YMCKO ribbon, 200 30-mil PVC cards
Specially designed cleaning supplies simplify preventive maintenance
True Colours ix Series ZXP 3 Ribbons

YMCKO: 280 images/roll
½ YMCKO: 400 images/roll
YMCKOK: 230 images/roll
KdO: 700 images/roll
KrO: 700 images/roll
Black Monochrome: 2000 images/roll
Red Monochrome: 1700 images/roll
Blue Monochrome: 1700 images/roll
Gold Monochrome: 1600 images/roll
Silver Monochrome: 1600 images/roll
White Monochrome: 1400 images/roll


Card Compatibility

For optimum card quality and printer performance, use genuine Zebra card supplies. For more information, visit www.zebra.com/cards.

Card Thickness: 10-40 mil
Card Size: CR-80, ISO 7810 format, Type ID-1
Card Material: PVC and PVC composite
Smart Card Contact — ISO 7816-1,2,3,4
Smart Card Contactless MIFARE® ISO 14443A/B
Spot color or monochrome print only on < 20 mil card thickness

PHYSICAL CHARACTERISTICS
Length 14.5" (368 mm)
Height 9.3" (236 mm)
Width 7.9" (200 mm)
Weight 11.6 lbs (5.3 kg)


OPERATING CHARACTERISTICS
Environmental

Operating Temperature: 60ºF to 86ºF/15ºC to 30ºC
Operating Humidity: 20% to 65% non-condensing
Storage Temperature: 23ºF to 131ºF/-5ºC to 55ºC
Storage Humidity: 20% to 70% non-condensing
Media Storage:

Temperature: 41ºF to 77ºF/5ºC to 25ºC
Humidity: 35% to 65% non-condensing
Do not store in direct sunlight

Electrical Auto-switching single-phase
AC power Operating range: 90-132VAC and 190-264VAC
RMS Frequency range: 47-63 Hz
FCC Class A

COMMUNICATION AND INTERFACE CAPABILITIES
USB V2.0 (cable included) — standard
Built-in 10/100 Ethernet — optional*

SOFTWARE TOOLS
CardStudio card design and issuance software
Windows® XP (32 bit), Windows Vista® (32 and 64 bit), Windows Server® 2003 (32 bit), Windows 7® (32 and 64 bit), Windows Server 2008 (32 and 64 bit), Windows 8® and Win 8 Pro (32 and 64 bit), Windows Server 2012 (64 bit)
Please see www.zebra.com for up to-date listing of supported systems.

OPTIONAL FEATURES

Built-in 10/100 Ethernet connectivity*
Manual card feeder bezel
Zebra OneCare extended product warranty programs
Lockable enclosure with opaque output bin*
Encoding Options and Specifications

Magnetic stripe encoder — ISO 7811 (new and pre-encoded); tracks 1, 2 and 3; high and low coercivity; stripe down; 30 mil cards only
ISO 7816 smart card contact station for third-party external contact encoders*
Combined MIFARE® ISO 14443 (13.56 MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification and PC/SC compliance (includes 50 card capacity [30 mil] output hopper)*
Encoding over USB and Ethernet
