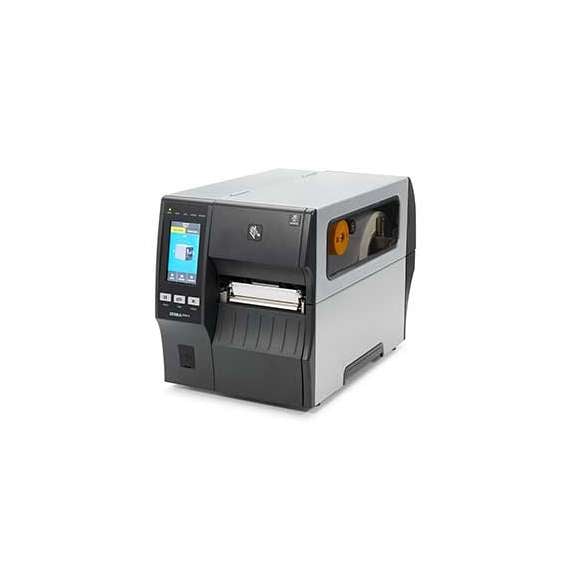

Zebra ZT411 Industrial Label Printer

Overview

Configure Your Way With Multiple Connectivity Options

The ZT400 comes standard with Ethernet, Serial, USB, dual USB Host and Bluetooth® 4.2. Add the optional dual-band wireless card with 802.11ac Wi-Fi and Bluetooth for blazing fast and reliable wireless connections.
Built to Handle a Wide Range of Media and Applications

You can count on the ZT400 to print a variety of different label formats on a variety of different media types. The printer is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi and 600 dpi* (600 dpi available on 4 in. ZT411 only). Add factory- or field-installable RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra’s exclusive ZT411 RFID On-metal Tagging Solution, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.

Dual USB Host Ports For Added Flexibility

Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard—with two host ports, there’s no need to plug and unplug peripherals.
Designed to Evolve With Your Needs

You can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Zebra DNA tools for years to come.
Enhance Productivity Sustainably With ZeroLiner

With Zebra ZeroLiner Linerless Printing Solution offered with the ZT411 only, you can boost productivity with up to 50% more labels per roll, minimizing downtime from roll changes and eliminating the hassle of peeling backing liners. Embrace sustainability with reduced waste and CO2 emissions, thanks to the elimination of backing liners and reduced material usage. Engineered for minimal adhesive buildup, the linerless ZT411 is specifically designed and tested for use with Zebra ZeroLiner labels and is offered in all dpi options for many applications. The factory-installed linerless option is direct thermal only, further reducing environmental impact by avoiding unnecessary parts. Alternatively, a linerless upgrade kit is now available for existing ZT411 printers. This field-installable kit allows for an easy conversion of your ZT411 fleet, maintaining versatility to switch to thermal transfer printing as your needs evolve.

Easy Media and Ribbon Loading

The side-loading supplies path makes loading simpler, faster, and more intuitive. The color-coded media path guides you on how to thread the media and ribbon through the printer, while lighted paths make it easy to see, even in poorly lit environments.
Space-Saving Design For an Easier Fit

Constructed using a bi-fold door, these printers are designed to easily fit in space-constrained environments. ENERGY STAR® qualified, they save you money throughout their lifecycle.
Direct Connection to Your Industrial Ethernet Network

With the Network Connect option, you can connect ZT400 printers directly to your Industrial Ethernet network without any additional equipment. This eliminates vulnerability points, improves security and saves man-hours in setup, management and troubleshooting.
Pair Devices and Access Information at a Touch

With the Print Touch™ app, you can pair ZT400 Series printers to NFC-enabled devices with a simple tap. Dynamic QR codes give you immediate access to the data you need, including Zebra how-to videos and product support.

Specification

Dimensions (closed) ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
ZT421: 19.5 in. L x 13.25 in. W x 12.75 H
495 mm L x 336 mm W x 324 mm H
ZT411 with Full Rewind:
19.7 in. L x 10.8 in. W x 16.7 in. H
500 mm L x 274 mm W x 425 mm H
ZT421 with Full Rewind:
19.7 in. L x 13.3 in. W x 16.7 in. H
500 mm L x 338 mm W x 425 mm H
Note: Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations.
Weight ZT411: 36 lbs./16.33 kg
ZT421: 40 lbs./18.14 kg
ZT411 with Full Rewind: 48.7 lbs./22.09 kg
ZT421 with Full Rewind: 55.3 lbs./25.08 kg

Printer Specifications
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT411 only)
Memory 256 MB SDRAM memory
512 MB on-board linear Flash memory
Maximum Print Width ZT411: 4.09 in./104 mm
ZT421: 6.6 in./168 mm
Maximum Print Speed ZT411: 14 ips/356 mm per second
ZT421: 12 ips/305 mm per second
Media Sensors Adjustable dual media sensors: transmissive and reflective
Print Length

ZT411

203 dpi: 157 in./3988 mm
300 dpi: 73 in./1854 mm
600 dpi: 39 in./991 mm

ZT421

203 dpi: 102 in./2591 mm
300 dpi: 45 in./1143 mm

Media Characteristics
Maximum Media Width

ZT411

1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

ZT421

2.00 in./51 mm to 7.0 in./178 mm tear/cutter
2.00 in./51 mm to 6.75 in./171 mm peel/rewind

Maximum Media Roll Size 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness 0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types

Continuous, die-cut, notch, black-mark, linerless media*

*For use only with linerless printer model

Ribbon Characteristics
Standard Length 1476 ft./450 M
Width ZT411: 2.00 in./51 mm to 4.33 in./110 mm
ZT421: 2.00 in./51 mm to 6.85 in./174 mm
Core 1.0 in./25 mm I.D.

Environmental
Operating Temperature Thermal transfer: 40º F to 104º F/5º C to 40º C
Direct thermal: 32º F to 104º F/0º C to 40º C
Storage/Transportation Temperature -40º F to 140º F/-40º C to 60º C
Operating Humidity 20% to 85% non-condensing
Storage Humidity 5% to 85% non-condensing

Programming Languages
ZBI 2.0™—Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II™—Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™—Eltron™ Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

Electrical
Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified


Options and Accessories
Communication Two open communication slots to add internal
cards for:

Dual band 802.11ac Wi-Fi and Bluetooth
Parallel (bi-directional interface)
10/100 Ethernet
Applicator interface

Media Handling

Rewind: Internally rewinds a full roll of printed labels on 3 in. core, or peels and rewinds liner (factory installed only)
Peel: Front-mount, passive peel option
Peel: Liner take-up—additional full-roll liner take-up spindle accommodates standard printer base
Cutter: Front-mount guillotine cutter and catch tray
1 in. I.D. Core media supply hanger (ZT411 only)
Ink-side in ribbon supply (ZT411 only)

Linerless*

There are two options for linerless capability:

Factory-installed linerless model (available as Direct Thermal only)
Field installable linerless upgrade kit

*Available on ZT411 only
RFID

Supports tags compatible with: UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models
Adaptive Encoding Technology automatically selects optimum encode settings
Field installable on-metal RFID kit available*

*ZT411 only (not available on the 600 dpi model)
Keyboard Display Unit ZKDU™ keyboard display units for stand-alone printing applications

Barcode Symbologies
Linear Barcodes

Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
Two Dimensional Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Agency Approvals
Safety and EMC IEC 62368, Class B, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
Product Markings Including, not limited to, cTUVus, CE, FCC, ICES-003(B), VCCI, RCM, NOM, S-Mark, CCC, EAC, BSMI, KCC, SABS, In-Metro, BIS

Fonts and Graphics
16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
64 MB user-available non-volatile memory storage for downloadable objects
8 MB user-available SDRAM

Recommended Services
Zebra OneCare™ maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels. For more information go to
www.zebra.com/zebraonecare
Zebra OneCare Select Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 24x7 live technical support and software updates
Advance Replacement and Express Shipping (Next Day Device Replacement)
Standard Commissioning
Online Return Material Authorization (RMA) support
Zebra OneCare Essential Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 8x5 live technical support and software updates
Three-day depot repair turnaround time plus free return ground shipping
Online Return Material Authorization (RMA) support
Note: Service availability may vary by region.
