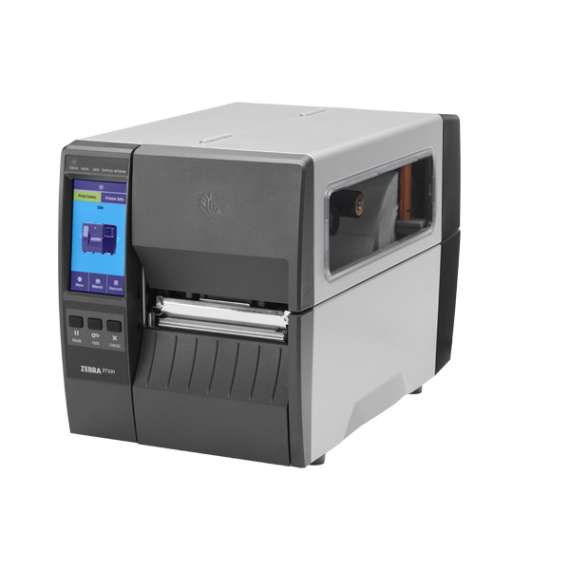

Zebra ZT231 Thermal Label Printer

Overview

Simple Operation with Smart Features
Reduce training time with the ZT231’s easy-to-use 4.3” full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.

Make It Easy for Your IT Team
Take advantage of Zebra’s robust, ever growing Print DNATM software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.

The Smart Choice Now and Later
The benefits of buying a ZT231 don’t end at the point of purchase. Expand your printer’s capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID encoding.

Built to Perform. Engineered to Endure.
Don’t Compromise on Quality
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you’re backed by Zebra, the #1 leader in barcode printing.

Get More Done with Greater Visibility
The ZT231 includes an all-new architecture to process more jobs at once and evolve with emerging technologies. Onboard analytics and printhead element out detection help you plan maintenance in advance. And, the easy tool-less platen and print head removal makes maintenance easy.

Small Footprint, Big Access
To help you make the most of your workspace, we’ve engineered the ZT231 with a space-saving, compact design and bi-fold door that reduces the height needed to open your printer. Take the trouble out of media loading with an intuitive design and color-coded cues. Adjustable sensors offer greater media flexibility and the large ribbon roll capacity lets you change media less frequently.

Connect Your Way
Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet and USB Host. Tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Add a second Ethernet port, 802.11ac or an Applicator port.

Get RFID Without Complication
Incorporate UHF RFID printing and encoding* for greater visibility and tracking. Get greater media flexibility and simple RFID calibration with Zebra’s adaptive encoding technology that eliminates complex placement guidelines.

Specification

Dimensions*

ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H
432 mm L x 241 mm W x 279 mm H
ZT231 with Liner Takeup Unit:
17 in. L x 9.5 in. W x 12.75 in. H
432 mm L x 241 mm W x 324 mm H

Weight

ZT231: 20 lbs./9.1 kg
ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg


*Dimensions are for the base model printer. Consult your salesrepresentative for specifics regarding other configurations.

Printer Specifications

Resolution

203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)

Memory

256 MB SDRAM memory
256 MB on-board linear Flash memory
Maximum Print Width 4.09 in./104 mm

Maximum Print Speed

12 ips (203 dpi)
8 ips (300 dpi)
Media Sensors Moveable transmissive and reflective sensors

Maximum Print Length

203 dpi: 157 in/3988 mm
300 dpi: 73in/1854 mm

Media Characteristics

Minimum Label and Liner Length

Tear mode: 0.7 in/18 mm
Cutter mode: 1 in/25 mm
Peel mode: 0.5 in/13 mm
Media Width 0.75 in./19.4 mm to 4.50 in./114 mm

Media Roll Size

8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness 0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black mark

Ribbon Characteristics (Thermal-transfer option only)

Standard Length 1,476 ft./450 m
Width 2 in./51 mm to 4.33 in./110 mm
Core 1.0 in./25.4 mm

Operating Characteristics

Operating Temp.

Thermal transfer: 40ºF to 105ºF/5º to 40ºC
Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation
Temperature -40ºF to 140ºF/-40º to 60ºC
Operating Humidity 20% to 85% non-condensing
Storage Humidity 5% to 85% non-condensing

Electrical

Universal auto-ranging (PFC-compliant)
power supply 100-240 VAC; 50-60 Hz
ENERGY STAR certified
Agency Approvals IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS
