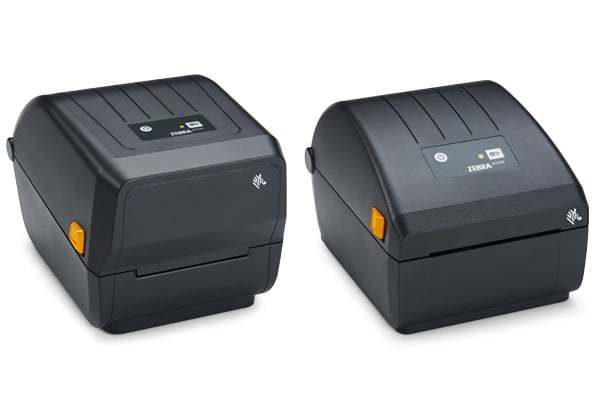

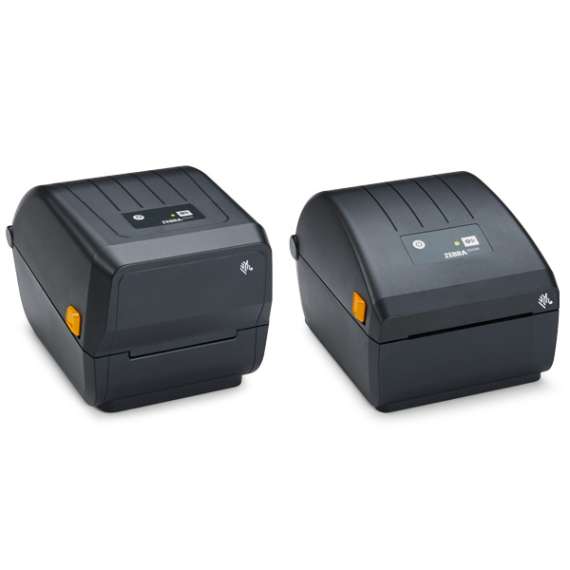

Zebra ZD230 TT 203dpi Thermal Label Printer

The Zebra ZD230 TT is a durable and reliable desktop thermal label printer designed for retail, logistics, healthcare, and warehouse environments. It supports both thermal transfer and direct thermal printing, delivering fast, high-quality label, tag, receipt, and barcode printing with flexible connectivity and easy media loading.

Specifications
  • Brand: Zebra
  • Model: ZD230 TT
  • Product type: Thermal Transfer Label Printer
  • Print methods: Thermal Transfer and Direct Thermal
  • Print resolution: 203 dpi / 8 dots per mm
  • Maximum print width: 104 mm
  • Print speed: Up to 152 mm/sec (6 ips)
  • Memory: 128 MB Flash, 128 MB SDRAM
  • Connectivity: USB
  • Programming languages: ZPL II, EPL 2, XML
  • Media types: Roll-fed, fan-fold, die-cut, continuous labels, tags, receipts, wristbands
  • Media width: 25.4 mm to 112 mm
  • Maximum label length: 991 mm
  • Ribbon support: Up to 300 m ribbon length
  • Media sensors: Movable black mark sensor, fixed gap sensor
  • Supported barcodes: 1D and 2D barcodes including QR Code, PDF417, DataMatrix, MaxiCode, Aztec
  • Print speed options: 152 mm/sec or 102 mm/sec
  • User interface: Single LED status indicator and feed/pause button
  • Construction: Dual-wall frame design
  • Operating system: Link-OS Basic
  • Supported software: ZebraDesigner Essentials, Zebra Setup Utilities
  • Operating temperature: 4.4°C to 41°C
  • Operating humidity: 10% to 90% non-condensing
  • Power input: Auto-detectable 100–240 VAC, 50–60 Hz
  • Dimensions: 267 x 197 x 191 mm
  • Weight: 1.7 kg
  • Energy efficiency: ENERGY STAR qualified
  • Compatible applications: Transportation, logistics, retail, healthcare, manufacturing
  • Optional accessories: Peeler, cutter, Ethernet, Wi-Fi, Bluetooth
  • Warranty: Standard manufacturer warranty
