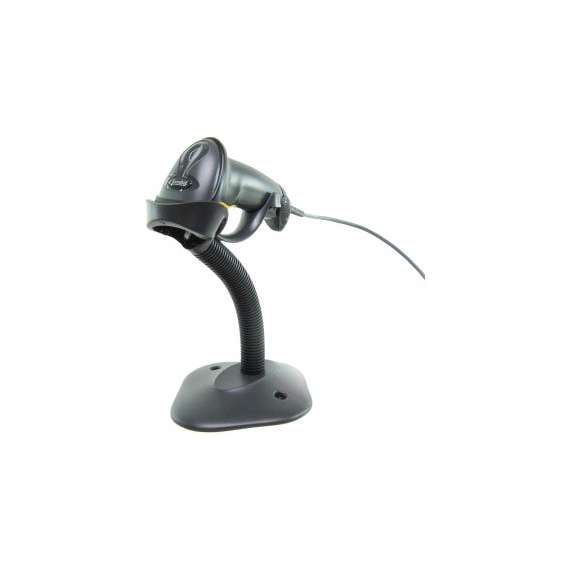

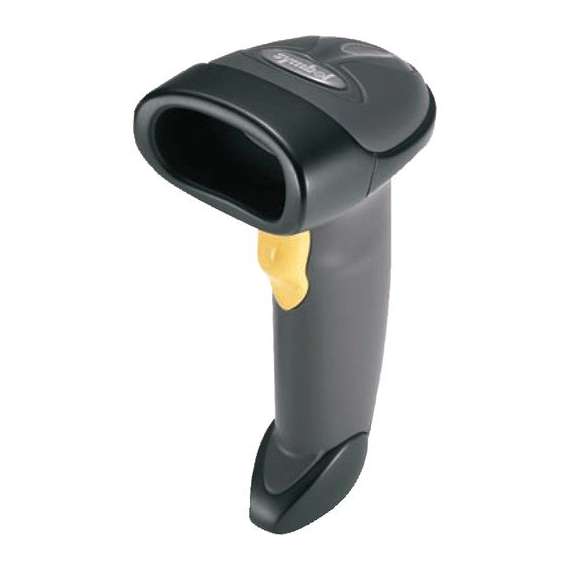

Zebra LS2208-SR20007R-UR Barcode Scanner

The Zebra LS2208-SR20007R-UR Barcode Scanner is a high-performance 1D barcode scanner designed for retail, warehouse, healthcare, and office environments. Featuring an ergonomic lightweight design, fast 100 scans-per-second performance, and reliable plug-and-play connectivity, it delivers accurate barcode capture, improved productivity, and all-day user comfort.

Specifications

    • Scanning Technology: 1D Laser Scanner
    • Scan Pattern: Single Line
    • Scan Speed: Up to 100 scans per second
    • Light Source: 650 nm Laser Diode Class 2
    • Supported Barcode Formats: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
    • Minimum Resolution: Code 39 – 3.0 mil
    • Scan Angle: 35°
    • Minimum Print Contrast: 20% reflective difference
    • Skew Tolerance: ±10°
    • Pitch Tolerance: ±65°
    • Roll Tolerance: ±60°
    • Read Range: Up to 25 in. / 63.5 cm for 13 mil UPC barcodes
    • Supported Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
    • Plug-and-Play Support: Yes
    • Keyboard Support: Supports over 90 international keyboards
    • User Indicators: Direct Decode Indicator, LED indicator, adjustable beeper
    • Dimensions: 15.2 x 6.4 x 8.5 cm
    • Weight: 150 g

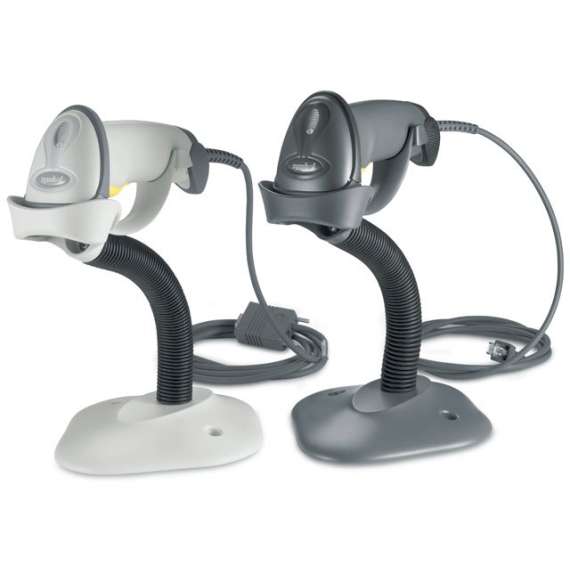

    • Color Options: Cash Register White, Twilight Black
    • Input Voltage: 4.5 to 5.5 VDC
    • Operating Current: 175 mA typical
    • Standby Current: 90 mA typical
    • Operating Temperature: 0°C to 50°C
    • Storage Temperature: -40°C to 70°C
    • Humidity: 5% to 95% non-condensing
    • Drop Resistance: Withstands multiple drops from 1.5 m onto concrete
    • Tumble Resistance: 500 tumbles at 0.5 m
    • Environmental Sealing: IP30
    • ESD Protection: ±15 KV Air, ±8 KV Direct, ±8 KV Indirect
    • Ambient Light Immunity: Up to 86,080 Lux
    • Connectivity: Wired
    • Ideal For: Retail POS, Inventory Management, Warehousing, Healthcare, Libraries, Office Use
    • Warranty: Manufacturer Limited Warranty Supported
