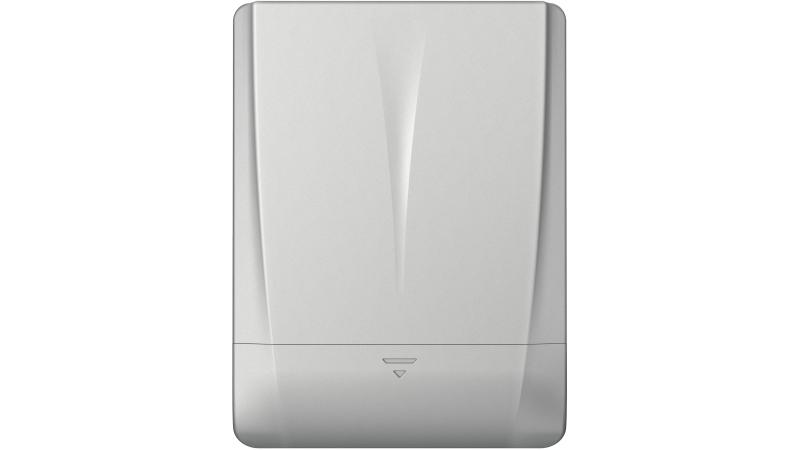

Wired Seismic Detector
DS-PDSKM-VG3
Please sign in so that we can notify you about a reply
- Detection Performance
- Detection MethodShock Sensor
- Detection RangeUp to 5m Radius
- Sensitivity8 Levels by DIP Switch
- Feature
- Digital ProcessingSupport
- Tamper ProtectionFront;Rear
- Rapid Temperature Rise DetectionSupport
- Displacement DetectionSupport
- Interface
- Alarm OutputNormally Closed
- LED IndicatorBlue(Alarm),Red(Noise Indication)
- Transmission
- Transmission MethodWired
- Electrical Characteristics
- Power Supply9 to16 VDC
- Typical Voltage12 V
- Power Consumption
Maximum current：17mA @12VDC
Quiescent current：17mA @12VDC
- General
- Operation Temperature-40 °C to 70 °C (-40 °F to 158 °F)
- Storage Temperature-50 °C to 70 °C (-58 °F to 158 °F)
- Operation Humidity10% to 90%
- Shell MaterialDie-cast metal
- IK RateIK10
- Dimension(WxHxD)60mm×80mm×19.5mm
- 226g
- Application ScenarioIndoor
