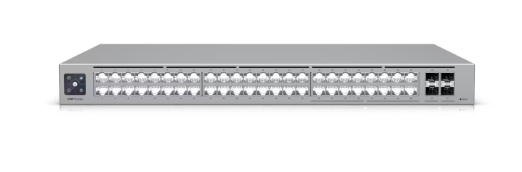

Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch
![Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/134/USW_Pro_Max_48.png.jpg "Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]"){kind=small}
![Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]](images/detailed/134/USW_Pro_Max_48.png "Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]")
![Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]](images/detailed/134/.png "Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]")
![Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/134/USW_Pro_Max_48.png.jpg "Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]")
![Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/134/.png.jpg "Buy Ubiquiti USW Pro Max 48 Gigabit 48 Port PoE Switch in [storefront]")
USW-Pro-Max-48-PoE
BrandUbiquiti
ConditionNew
Device MountingRack Mount
Device SpeedGigabit (10/100/1000Mbps)
Number of Ports48 ports
Power over Ethernet (PoE)Full PoE
SFP Ports4
Switch TypeManaged
Warranty IssuerManufacturer
Please sign in so that we can notify you about a reply

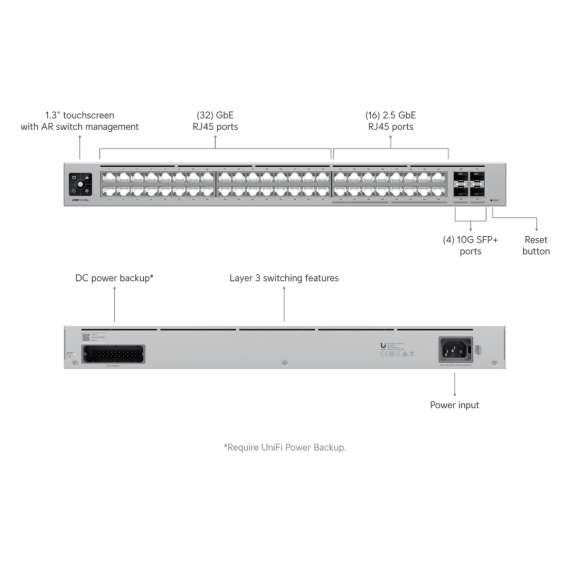

A 48-port, Layer 3 Etherlighting switch with 2.5 GbE and PoE++ output.
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
(32) GbE ports including (24) PoE+ and (8) PoE++
(4) 10G SFP+ ports
DC power backup ready
720W total PoE availability
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Power method Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input
Power supply AC/DC, internal, 820W
Supported voltage range 100—240V AC
Max. power consumption 100W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
(32) GbE ports including (24) PoE+ and (8) PoE++
(4) 10G SFP+ ports
DC power backup ready
720W total PoE availability
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Power method Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input
Power supply AC/DC, internal, 820W
Supported voltage range 100—240V AC
Max. power consumption 100W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
