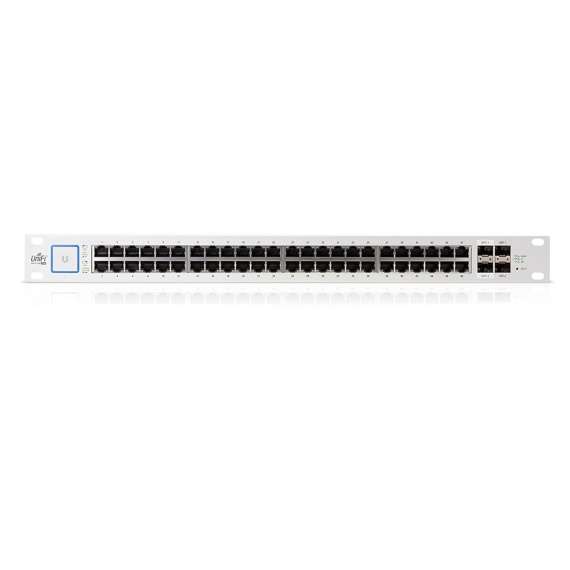

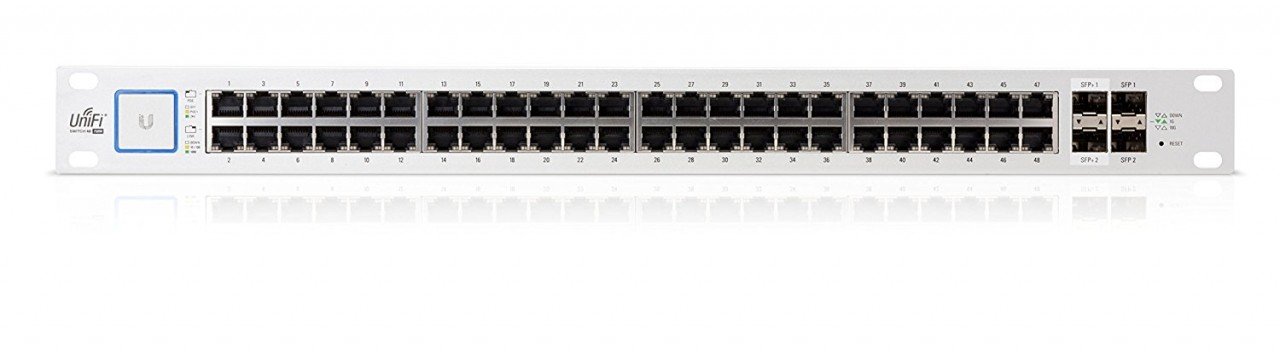

Ubiquiti Unifi Switch 48-port PoE 750W Switch

The Ubiquiti UniFi Switch 48 750W enables you to build and expand your network. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

Ubiquiti UniFi Switch 48 750W – US-48-750W Features

• Total Non-Blocking Throughput – 70 Gbps
• SFP+ Ports – 2
• SFP Ports – 2
• Max. Power Consumption – 750W
• Switching capacity: 140 Gbps
• Forwarding rate: 104.16 Mpps
• Maximum power consumption: 750W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

Switching Performance
The UniFi Switch US-48-750W offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility
By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.
Fiber Connectivity
The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.

Ubiquiti UniFi Switch 48 750W – Technical Specifications

Dimensions 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69″)
Weight 5.3 kg (11.68 lb)
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Max. Power Consumption US-48-500W: 500W, US-48-750W – 750W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply
US-48-750W – AC/DC, Internal, 750W DC
LEDs Per Port
Serial Console Port – N/A
RJ45 Data Ports – PoE, Speed/Link/Activity
SFP+/SFP Data Ports – Speed/Link/Activity
Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
