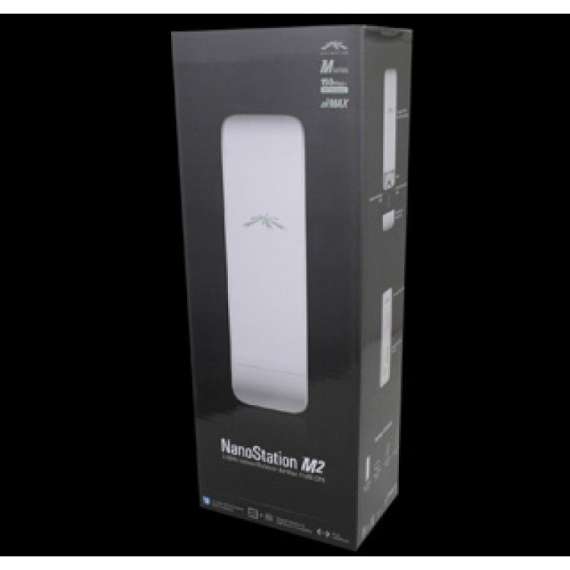

Ubiquiti NSM2 Nanostation
Overview
Indoor/Outdoor airMAX® CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Powerful airOS® Features
Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Technical Specifications
Frequency: 2.4 GHZ
Throughput:150Mbps
Range: 13km
Power Supply (POE): 24V, 0.5A
Max. Power Consumption: 8W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain: 10.4-11.2 dBi
Networking Interface: (2) 10/100 Ethernet Ports
Processor Specs: Atheros MIPS 24Kc, 400 MHz
Memory: 32 MB SDRAM, 8 MB
FlashFrequency: 2.4 GHz
Cross-pol Isolation: 23 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 55° (H-pol) / 53° (V-pol) / 15° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount
Operating Temperature: -30 to 75° C
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Ye s
Shock & Vibration: ETSI300-019-1.4
