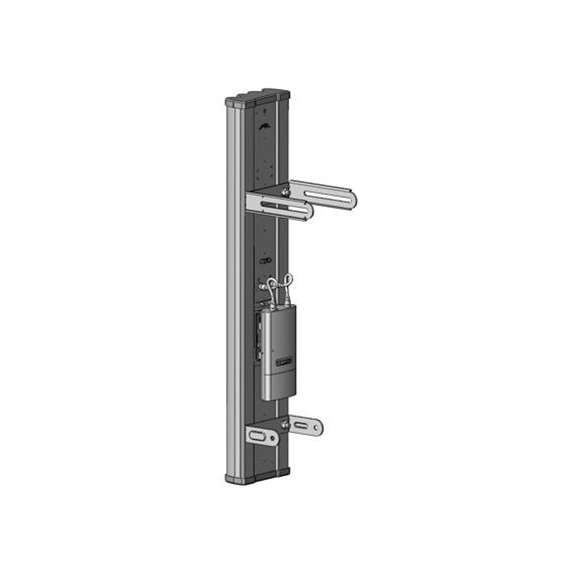

Ubiquiti AM-2G15-120 airMAX Sector 2.4GHz 15dBi 120degrees Antenna
The Ubiquiti AM-2G15-120 airMAX Sector Antenna is a carrier-class 2×2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately).On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Flexibility – To support your specific application, the airMAX Sector Antenna is available in several frequency models: • 900 MHz• 2.4 GHz• 3 GHz• 5 GHz
High Performance – Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
Durable Construction – Each airMAX Sector Antenna is designed with robust mechanical design for outdoor application use.
Plug and Play Integration – Every airMAX Sector Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Sector Antenna for your application.
Pair the Rocket radio with the airMAX Sector Antenna to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience
Dimensions (mm) | 700 x 145 x 93 |
Weight | 4.0 kg |
Frequency Range | 2.3 – 2.7 GHz |
Gain | 15.0 – 16.0 dBi |
HPOL Beamwidth | 123° (6 dB) |
VPOL Beamwidth | 118° (6 dB) |
Electrical Beamwidth | 9° |
Electrical Downtilt | 4° |
Max. VSWR | 1.5:1 |
Wind Survivability | 125 mph |
Wind Loading | 24 lbf @ 100 mph |
Polarization | Dual-Linear |
Cross-pol Isolation | 28 dB Min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
