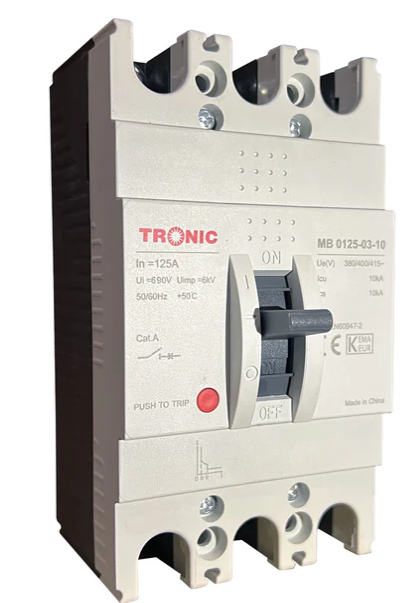

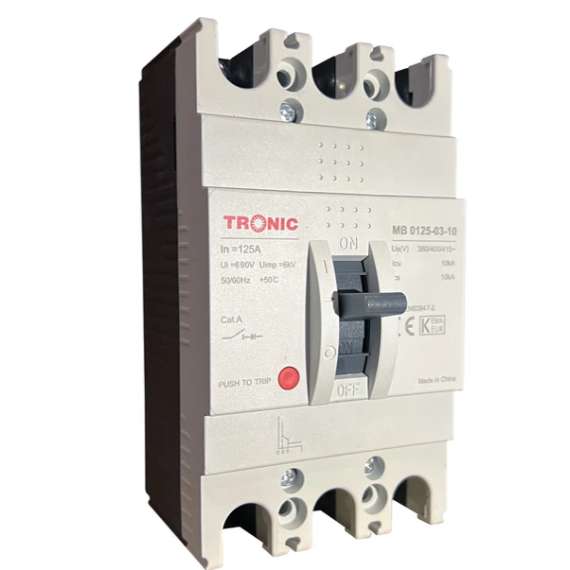

Tronic MB 0125-03-10 125A 3P MCCB Moulded Case Circuit Breaker
Please sign in so that we can notify you about a reply
- Rated Current (In): 125A – Suitable for medium to heavy-duty circuits
- Rated Operational Voltage (Ue): 380/400/415V AC – Standard for 3-phase systems
- Rated Insulation Voltage (Ui): 690V – High insulation level
- Rated Impulse Voltage (Uimp): 6kV – Withstands transient surges
- Frequency: 50/60Hz – Universal frequency compatibility
- Operating Temperature: Up to +50°C – For demanding environments
- Breaking Capacity (Icu/Ics): 10kA – Reliable short-circuit protection
- Poles: 3P – Three-phase protection
- Control: Toggle switch with ON/OFF indication and test trip button
- Compliance: Built to IEC 60947-2 standards –
Globally recognized safety compliance - Certifications: CE, KEMA, EAC approved
