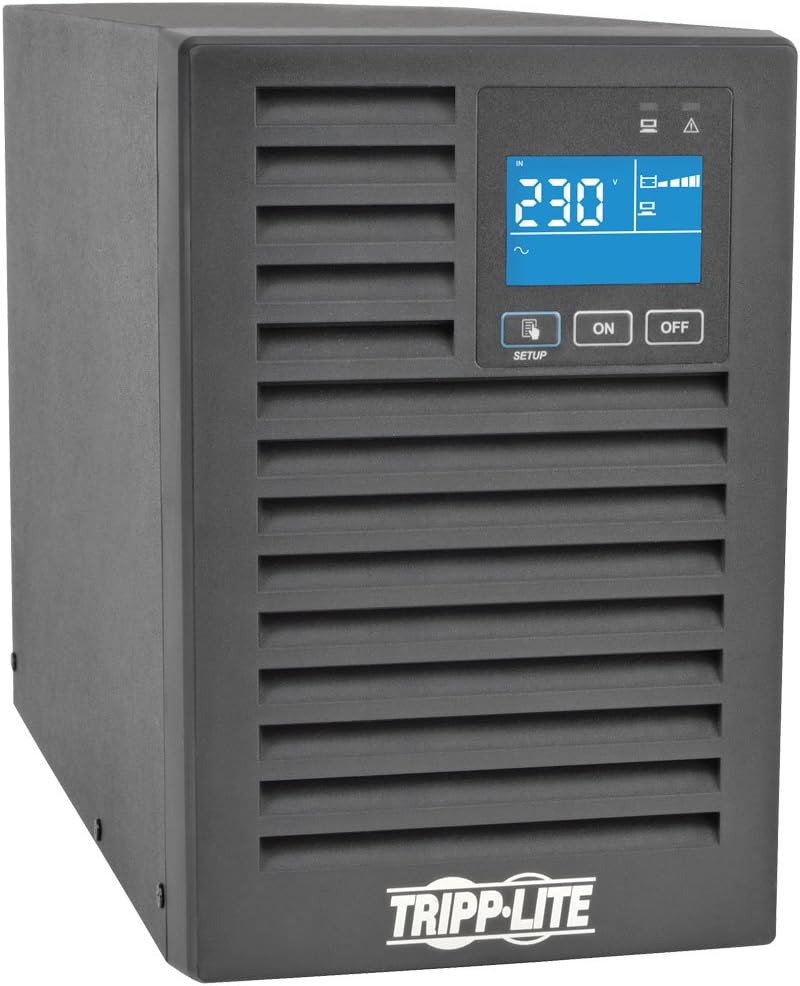

Tripp Lite SUINT1000XLCD Smart Online 230V 1kVA On-Line Double-Conversion UPS

UPS Type: On-Line
Rated input current (Maximum Load): 4.9A 220V; 4.7A 230V; 4.5A 240V
Nominal Input Voltage(s) Supported: 220V AC; 230V AC; 240V AC
Nominal Input Voltage Description: 230V factory default
UPS Input Connection Type: C14 inlet
Input Circuit Breakers: 10A
Input Phase: Single-Phase
Output Volt Amp Capacity (VA): 1000
Output kVA Capacity (kVA): 1
Output Watt Capacity (Watts): 900
Output kW Capacity (kW): 0.9
Nominal Output Voltage(s) Supported: 220V; 230V; 240V
Battery Type: Valve Regulated Lead Acid (VRLA)
Full Load Runtime (min.): 4.8 min. (900w)
Half Load Runtime (min.): 12.8 min. (450w)
Expandable Battery Runtime: Extended runtime supported via optional external battery packs
External Battery Pack Compatibility: BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
DC System Voltage (VDC): 24
Battery Recharge Rate (Included Batteries): Less than 6 hours from 10% to 90% (typical, full load discharge)
Voltage Regulation Description: Online, double-conversion power conditioning
Overvoltage Correction: 2% output voltage regulation during overvoltages to 280
Undervoltage Correction: 2% output voltage regulation during undervoltages to 80V (50% load), 175V (100% load)
Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional information
Switches: ON switch supports inverter-on, battery-test, alarm-off and enter functions; OFF switch supports inverter-off and fault-clear functions; SETUP switch enables scroll-down and enter setup-mode functions
Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Cooling Method: Fan
Shipping Weight (kg): 12.43
UPS Power Module Weight (kg): 9.66
