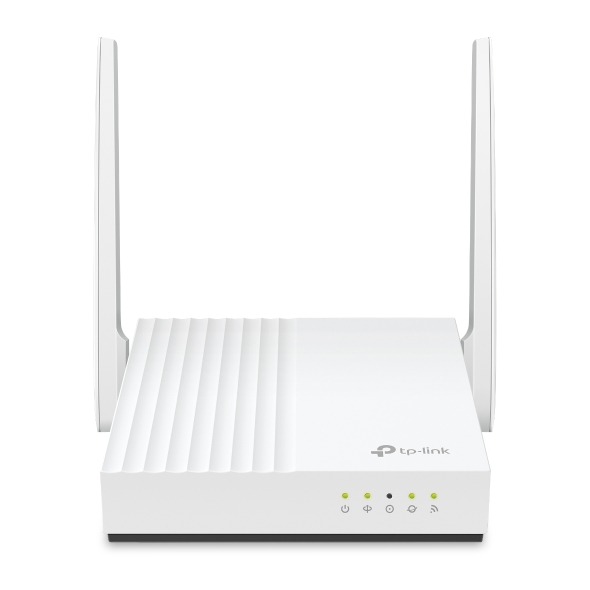

TP-Link XN020-G3 300Mbps Wireless N Gigabit XPON Router

Connect fibre internet with the TP-Link XN020-G3, combining GPON/EPON dual-mode support, 300Mbps 2.4GHz Wi-Fi, Gigabit Ethernet, IPTV support and convenient Aginet app management.

Specifications
  • Product Type: XPON Router
  • XPON: Supports GPON and EPON dual modes with automatic switching

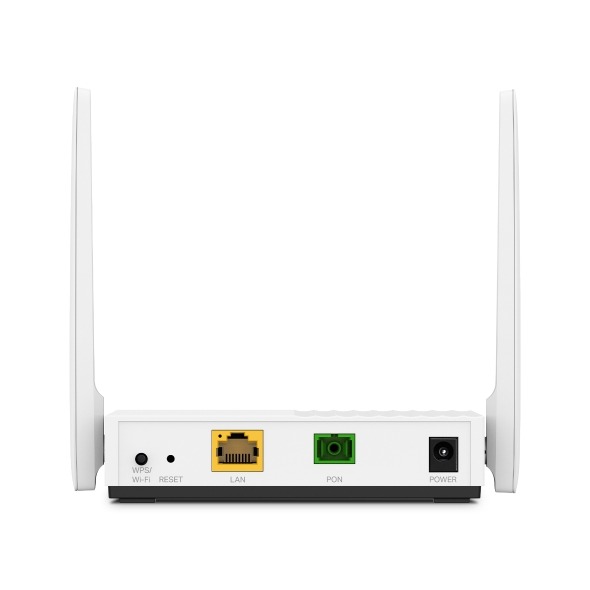

  • PON Interface: 1x SC/APC PON port
  • Ethernet: 1x Gigabit Ethernet LAN port
  • Wi-Fi Standard: IEEE 802.11b/g/n
  • Wireless Frequency: 2.4GHz
  • Wireless Speed: Up to 300Mbps
  • Antenna: 2x external antennas
  • GPON Standards: ITU G.984.1, G.984.2, G.984.3, G.984.4 and G.988
  • GPON Data Rates: Downstream 2.488Gbps, upstream 1.244Gbps
  • EPON Data Rates: Downstream 1.25Gbps, upstream 1.25Gbps
  • Wireless Security: 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption
  • Wireless Functions: Wireless radio enable/disable, WMM, wireless statistics and 2.4GHz wireless schedule
  • Transmission Power: <20dBm (2.4GHz)
  • IPTV: IGMP Proxy/Snooping, Bridge and Tag VLAN support
  • Network Features: 802.1Q VLAN, static routing, IGMP v1/v2/v3, QoS, DHCP server/client/relay, port forwarding, DMZ, ALG and UPnP
  • Security: NAT Firewall, SPI Firewall, access control, MAC/URL filtering, DoS protection, SYN flooding protection, Ping of Death protection and IP/MAC address binding
  • Management: WebGUI, Aginet app, Aginet ACS, OMCI, TR-069, TR-098 and TR-143
  • Authentication: SN, Password and SN + Password authentication modes
  • IPv4/IPv6: Supports IPv4 and IPv6
  • Dynamic DNS: DynDNS and NO-IP
  • Dimensions: 115 × 106.7 × 24.3mm
  • Power Supply: 12V/0.6A
  • Operating Temperature: 0°C–40°C
  • Storage Temperature: -40°C–60°C
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
  • Package Contents: XN020-G3 unit, RJ45 Ethernet cable, quick installation guide and power adapter
  • Certification: CE
  • Warranty: Standard manufacturer warranty
