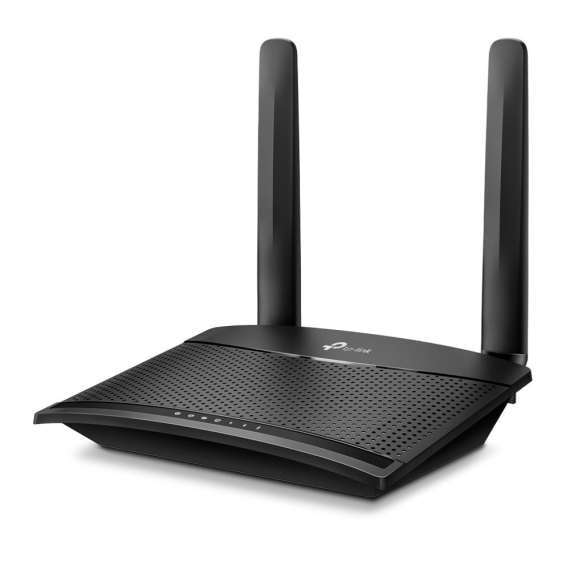

TP-LINK TL-MR100 300 Mbps WiFi 4G LTE Router

300 Mbps Wireless N 4G LTE Router

Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

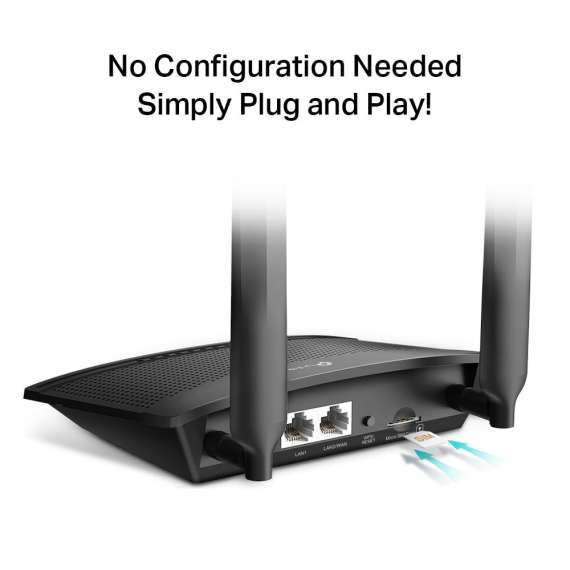

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness
• Robust Parental Controls – If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
• Guest Network – It provides separate Wi-Fi access for guests while securing the whole network.

Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Specifications:-

HARDWARE FEATURES
• Interface: 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
• Button: WPS/Reset Button
• External Power Supply: 9V/0.85A
• Dimensions ( W x D x H ): 6.06×4.49×1.42 in ( 154×114×36 mm)
• Antenna: 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps
• Reception Sensitivity: 11g 54M: -74 dBm, 11n HT20: -71 dBm, 11n HT40: -68 dBm
• Transmit Power: < 20 dBm (2.4 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) • 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
• Security: IPv4 SPI Firewall, IP and MAC Address Binding
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management: Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• Protocols: IPv4, IPv6
• Guest Network: 2.4 GHz Guest Network
• Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS
• Certification: CE, RoHS
• Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other, Java-enabled browser, Micro SIM Card
• Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Package Contents

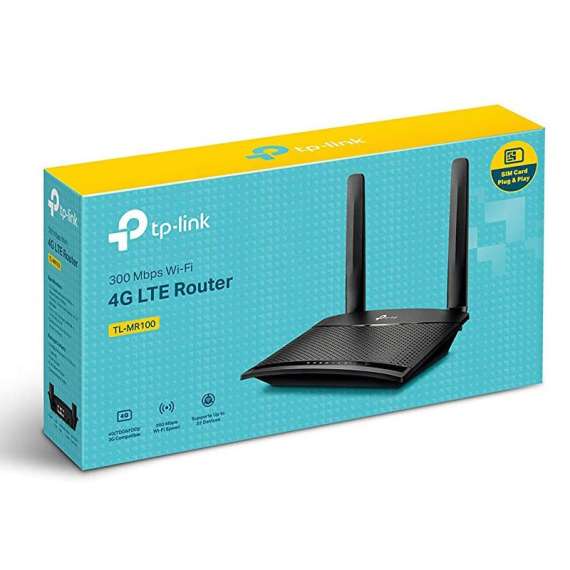

• 300 Mbps Wireless N 4G LTE TL-MR100
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
