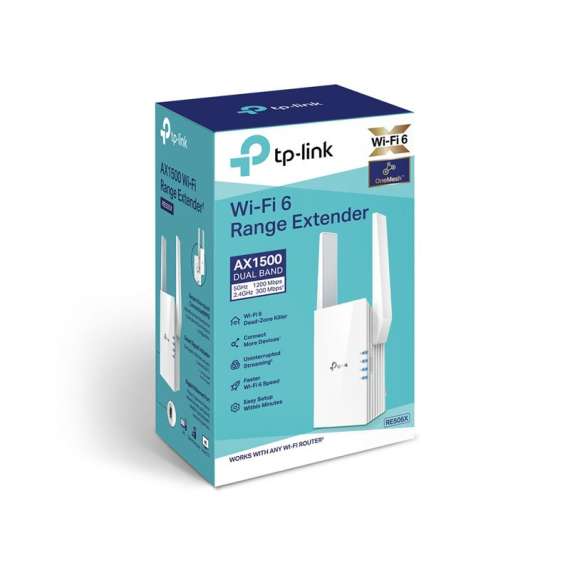

TP-LINK TL-RE505X AX1500 Dual Band WiFi Range Extender

Key Features

RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point.

Brief Description

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.

Dual Band, More Benefits
Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.

Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.

• Smart Roaming: Uninterrupted streaming when moving around your home
• One Wi-Fi Name: No more switching Wi-Fi network names
• Easy Creation: OneMesh Router and OneMesh Range Extenders pair instantly
• Unified Management: Manage the entire network all from the TP-Link Tether app

Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications:-
HARDWARE FEATURES
Ports:1 Gigabit Ethernet Port
Button :WPS Button, Reset Button
Power Consumption:10W
Dimensions ( W x D x H ):2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna :2 External Antennas
WIRELESS FEATURES
Wireless Standards:IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency:2.4GHz and 5GHz
Signal Rate:300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Reception Sensitivity
5GHz:

11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA-PSK2 encryptions
OTHERS
Package Contents Wi-Fi Range Extender RE505X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications FCC, RoHS

Package Contents
• Wi-Fi Range Extender RE505X
• Quick Installation Guide
