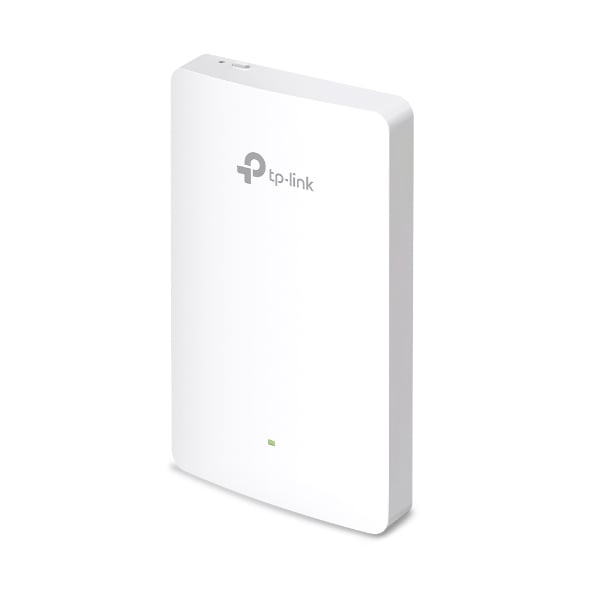

TP-Link TL-EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point

The TP-Link EAP615-Wall is a high-performance AX1800 WiFi 6 wall-plate access point designed for seamless in-room wireless and wired connectivity. It delivers fast dual-band speeds, multiple Ethernet ports, and centralized Omada management, making it ideal for hotels, offices, and multi-room deployments.

Specifications

• Wireless standard: Wi-Fi 6 (802.11ax), backward compatible with Wi-Fi 5/4/3
• Wi-Fi speed: Up to 574 Mbps on 2.4GHz and 1201 Mbps on 5GHz (AX1800 total)
• Dual band technology: Simultaneous 2.4GHz and 5GHz operation for optimized performance
• Antennas: 2× dual-band internal antennas (2.4GHz: 2×3 dBi, 5GHz: 2×4 dBi)

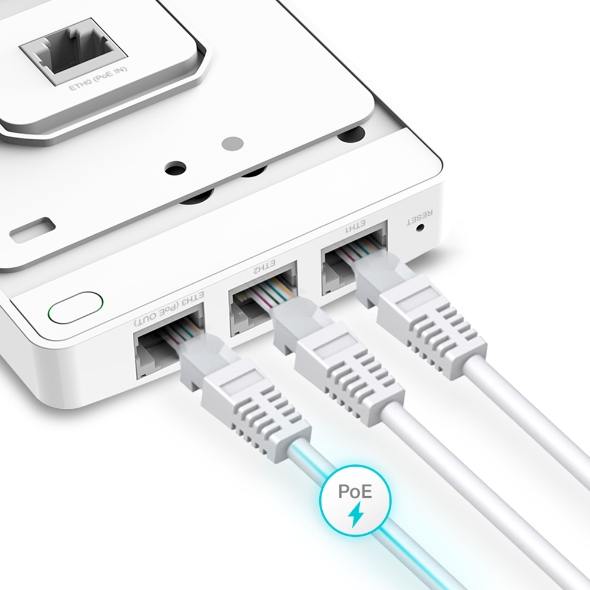

• Ethernet ports: 1× Gigabit uplink port + 3× Gigabit downlink ports (1 supports PoE pass-through)
• PoE support: IEEE 802.3af/at PoE input with PoE pass-through output support
• Deployment: Wall-plate design compatible with 86mm EU/US standard junction boxes
• Management: TP-Link Omada SDN centralized cloud, controller, and app-based management
• SSID support: Up to 16 SSIDs (8 per band) for flexible network segmentation
• Mesh support: Seamless roaming and Omada Mesh compatibility

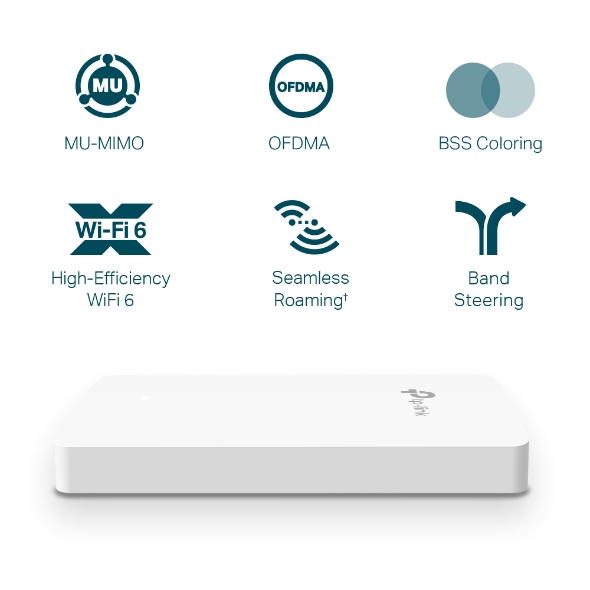

• Performance features: MU-MIMO, Beamforming, Band Steering, Airtime Fairness, Load Balancing, QoS (WMM)
• Security: WPA/WPA2/WPA3 support, MAC authentication, RADIUS accounting, and guest network isolation
• Guest network: Secure captive portal with authentication options (SMS, voucher, Facebook WiFi)
• Power consumption: Approx. 10W–11.5W depending on configuration (PoE pass-through off)
• Management tools: Wireless scheduling, reboot scheduling, transmit power control, and channel optimization
