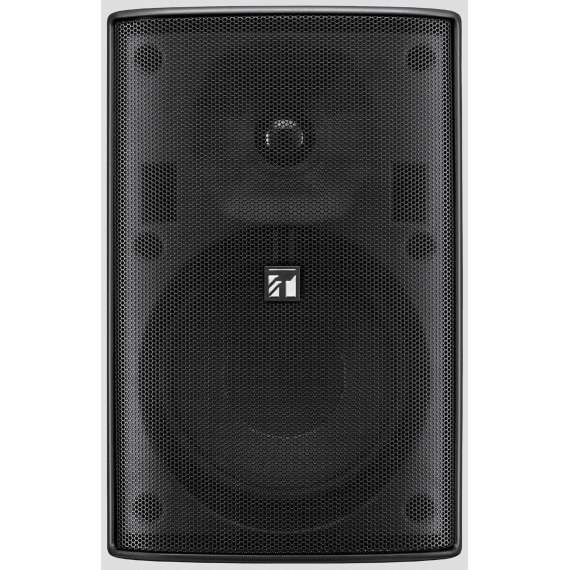

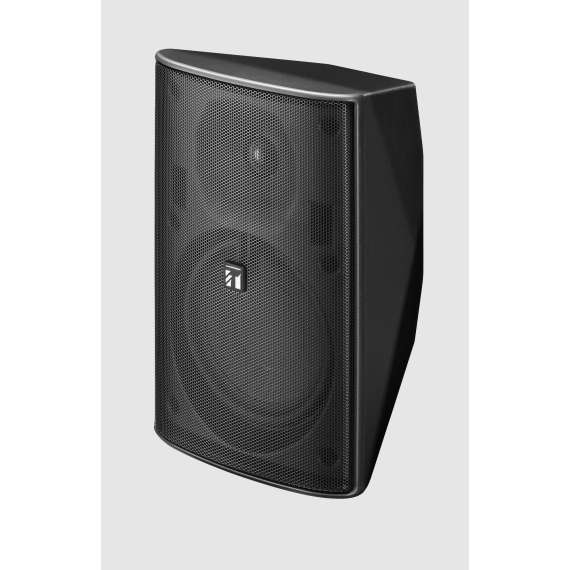

TOA F-1300BTWP Waterproof Design Speaker

The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-1300BTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.

Enclosure: Bass-reflex type

Rated Input: 30 W (high impedance)

Rated Impedance
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

Sensitivity: 90 dB (1 W, 1 m) at installation in 1/2 free sound field

Frequency Response: 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field

Crossover Frequency: 2 kHz

Directivity Angle: Horizontal: 110°, Vertical: 100°

Speaker Component
Low frequency: 13 cm (5) cone-type
High frequency: 25 mm (1) dome tweeter

Input Terminal: Push-in terminal

Water Protection: IPX4

Finish
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, anti-corrosive paint
Joint bracket, wall bracket: Stainless steel (SUS304), t1.5
Speaker bracket: Die-cast aluminum, black, paint

Dimensions: 162 (W) x 250 (H) x 161 (D) mm (6.38 x 9.84" x 6.34")

Weight: 3.6 kg (7.94 lb) (including the supplied brackets)

Included Accessories: Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set, Terminal cover …1, Terminal cover mounting screw …4
