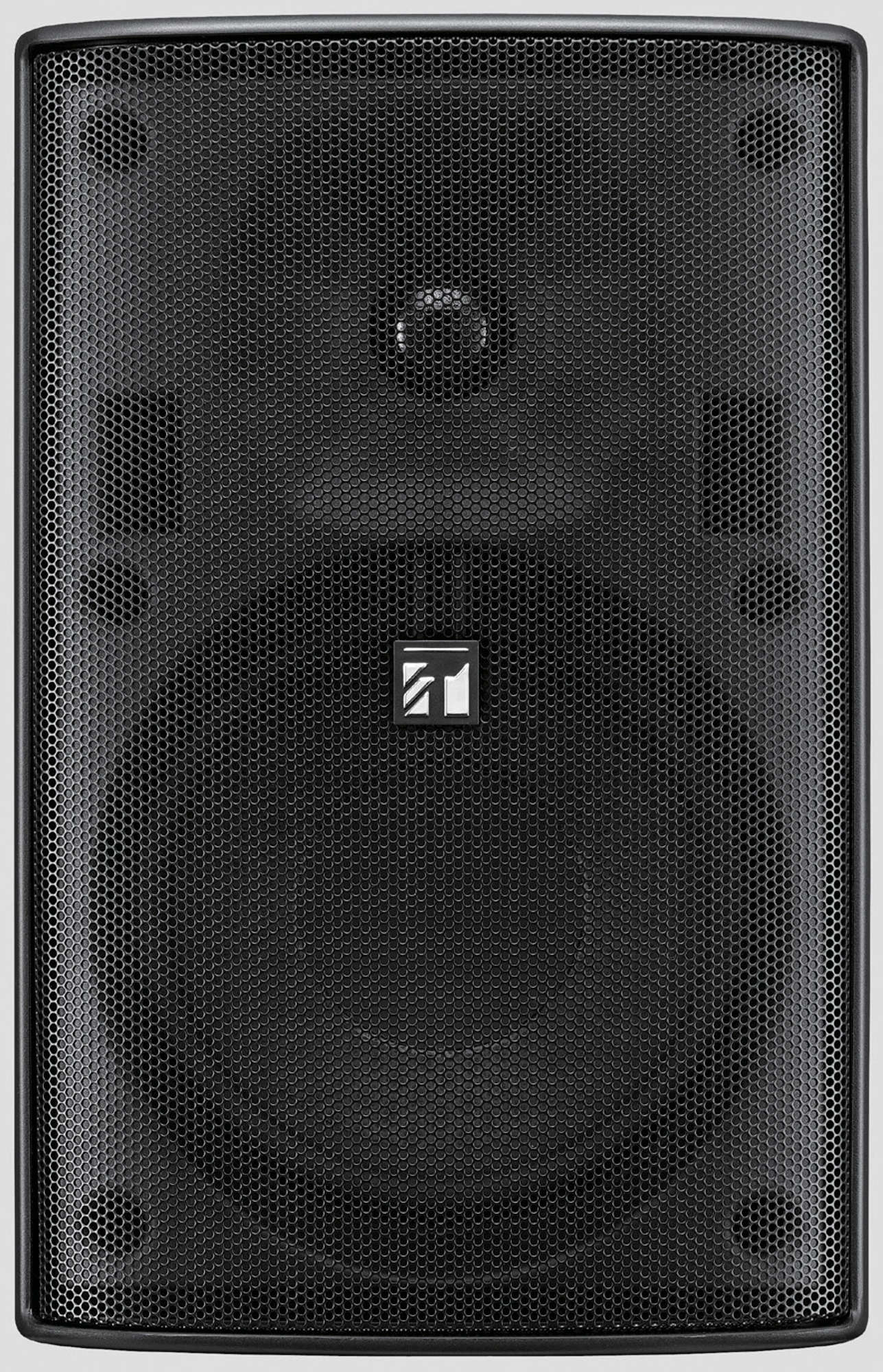

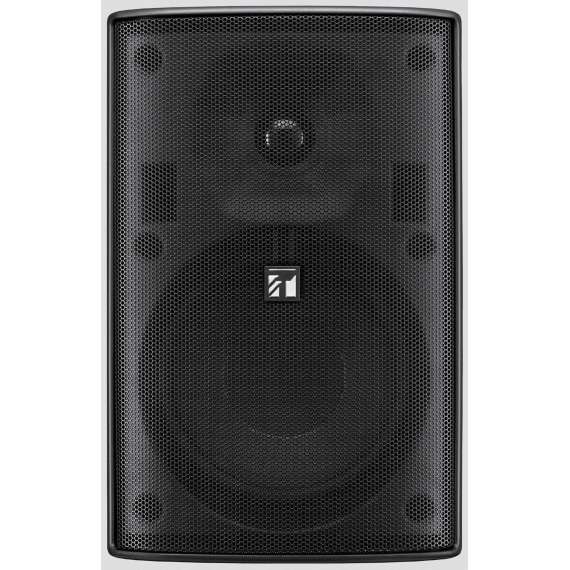

TOA F-1300BT Design Speakers
![Buy TOA F-1300BT Design Speakers in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/126/f1300bt_pfle.jpg.jpg "Buy TOA F-1300BT Design Speakers in [storefront]"){kind=small}
![Buy TOA F-1300BT Design Speakers in [storefront]](images/detailed/126/f1300bt_pfle.jpg "Buy TOA F-1300BT Design Speakers in [storefront]")
F-1300BT
Please sign in so that we can notify you about a reply
The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
Enclosure: Bass-reflex type
Rated Input: 30 W (high impedance)
Power Handling
Continuos pink noise: 50 W (low impedance)
Continuos program: 150 W (low impedance)
Rated Impedance
8 Ω
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity: 90 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency: 2 kHz
Directivity Angle: Horizontal: 110°, Vertical: 100°
Speaker Component
Low frequency: 13 cm (5) cone-type
High frequency: 25 mm (1) dome tweeter
Input Terminal: Push-in terminal
Finish
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint
Dimensions: 162 (W) x 250 (H) x 161 (D) mm (6.38 x 9.84" x 6.34")
Weight: 3.6 kg (7.94 lb) (including the supplied brackets)
Included Accessories: Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
Enclosure: Bass-reflex type
Rated Input: 30 W (high impedance)
Power Handling
Continuos pink noise: 50 W (low impedance)
Continuos program: 150 W (low impedance)
Rated Impedance
8 Ω
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity: 90 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency: 2 kHz
Directivity Angle: Horizontal: 110°, Vertical: 100°
Speaker Component
Low frequency: 13 cm (5) cone-type
High frequency: 25 mm (1) dome tweeter
Input Terminal: Push-in terminal
Finish
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint
Dimensions: 162 (W) x 250 (H) x 161 (D) mm (6.38 x 9.84" x 6.34")
Weight: 3.6 kg (7.94 lb) (including the supplied brackets)
Included Accessories: Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
