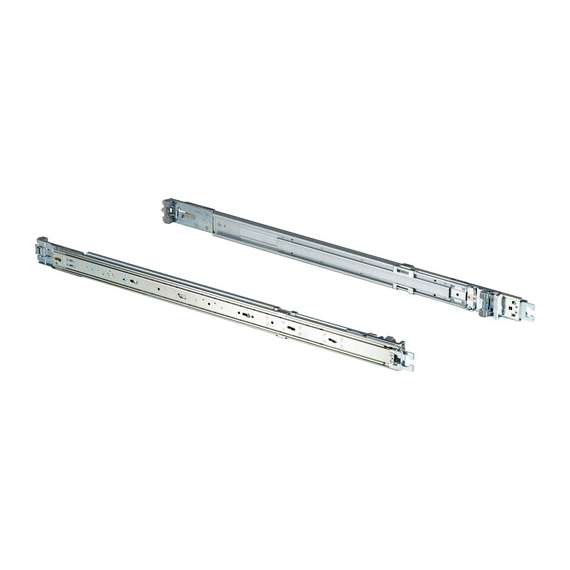

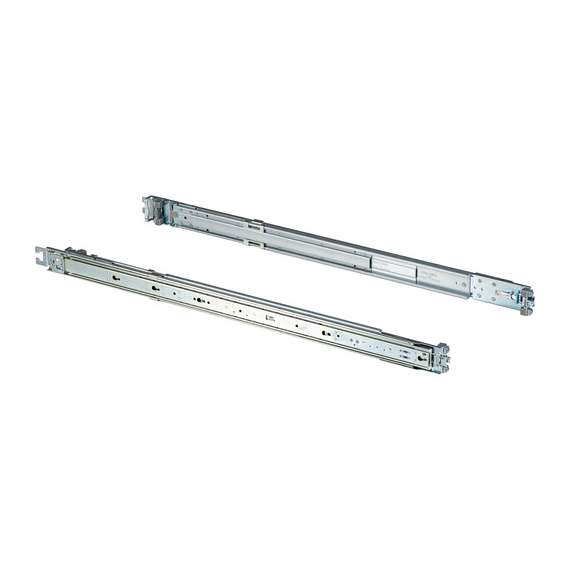

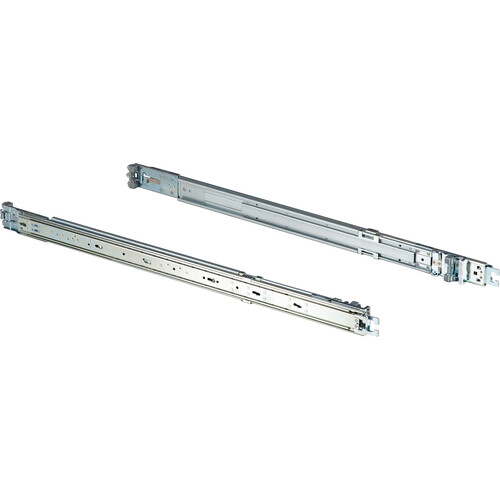

Synology RKS-02 Sliding Rail Kit

The Synology Sliding Rail Kit allows you to mount your Synology rackmount servers on sliding rails for easy and convenient access.

Compatibility
FS series: FS6400, FS3600, FS3410, FS3400, FS3017, FS2017
SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
UC series: UC3400, UC3200
DP series: DP7400
23 series: RS2423RP+, RS2423+, RX1223RP
22 series: RS822RP+, RS822+, RS422+, RX1222sas
21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, FX2421
20 series: RS820RP+, RS820+
19 series: RS1619xs+, RS1219+, RS819, RXD1219sas
18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418
17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RX1217
16 series: RS18016xs+, RS2416RP+, RS2416+, RS816, RX1216sas
15 series: RS815RP+, RS815+, RS815, RC18015xs+, RXD1215sas, RX415
14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214
13 series: RS10613xs+, RS3413xs+, RX1213sas
12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812
11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211
10 series: RS810RP+, RS810+, RX410
9 series: RS409RP+, RS409+, RS409, RX4
Installation Requirements
Mount post width must be equal to or greater than 17.7" (450mm)
Panel width must be equal to or greater than 18.9" (480mm)
Rack mounting depth: 24 to 35" (610 to 890mm)
Rack mounting square hole: at least 0.37 x 0.37" (9.5 x 9.5mm)
Rack mounting round hole: at least 0.28" (7.1mm)
