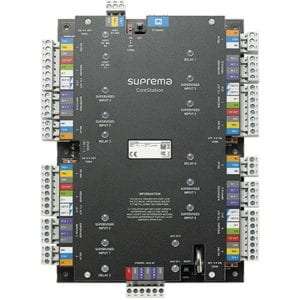

Suprema CoreStation Intelligent Door Controller

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar 2 platform.

Features

Centralized Biometric Access Control

Centralized storage for user and access control data including fingerprint credentials

Complete controller functionalities with fingerprint matching

Multi-port interface for fingerprint /RF readers

Supports locks, sensors, RTE, and alarms

Enterprise-level Performance

Improved Security

• Centralized, secure storage of biometric and group access data

• No Ethernet connection to the edge devices

• No data stored on the edge devices

• Secure communication via TLS 1.2

• AES-256 encryption

System Flexibility and Scalability

• Compatible with OSDP 2.0

• Elevator control with OM-120

• Supports up to 132 access points with DM-20 and Secure I/O 2
  (132 x Wiegand readers/64 x RS-485 readers)

• 3rd party Wiegand reader

• 4ch onboard reader control
  (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)

• Leverages existing wiring

Simultaneous matching speed up to 8 devices in 1 second
