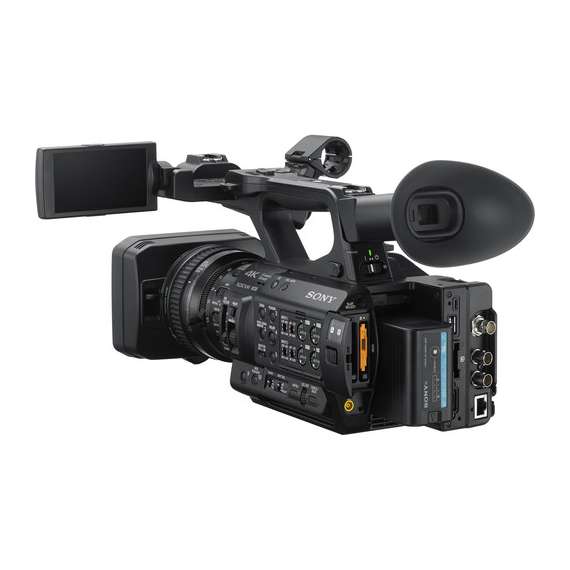

Sony PXW-Z280 4K Sensor XDCAM Camcorder

• Three 1/2″ Exmor R CMOS Sensors
• 4K 60p Recording
• Integrated 17x Optical Zoom Lens
• Electronic Variable ND Filter
• Supports XAVC Intra/Long, MPEG HD, DVCAM
• Supports S-Log 3
• Supports HLG for an HDR Workflow
• Simultaneous 4K/HD Recording
• 12G-SDI Output Supports 4K 60p
• Built-In 2.4/5 GHz Wi-Fi

Camera
Shutter Speed

1/8000 to 1/24 Second
Built-in ND Filter

2 Stop (1/4)
4 Stop (1/16)
6 Stop (1/64) ND Filters
a 2 to 7 Stop Electronic ND Filter
Mechanical Filter Wheel with Clear
Minimum Illumination

0.0013 Lux
Signal to Noise Ratio

63db
White Balance

1500 to 50,000K
Presets: ATW, AWB, Set A, Set B
Shutter

Electronic Rolling Shutter
Shutter Angle

5.6 to 360°
Imaging/ Image Sensor
Sensor Type

3-Chip 1/2"-Type CMOS Sensor
Sensor Resolution

Effective: 8.3 Megapixel
Sensitivity

f/12 at 2000 lux 89.9% Reflectance (1080p59.94 in Standard Mode or 4K59.94 in High Sensitivity Mode)
f/13 at 2000 lux 89.9% Reflectance (1080p59.94 in Standard Mode or 4K59.94 in High Sensitivity Mode)
Gain

-3 to 42 dB
Image Stabilization

Optical in Integrated Lens
Lens
Focal Length

5.6 to 95.2mm (35mm Equivalent Focal Length: 30.3 to 515mm)
Optical Zoom Ratio

17x
Maximum Aperture

f/1.9
Minimum Aperture

f/16
Minimum Focus Distance

Telephoto: 31.5" / 80.0 cm
Wide: 2.0" / 5.1 cm
Focus Type

Auto and Manual Focus
Filter Size

77 mm
Focus & Optics
Focus Mode

Manual Focus
Automatic (A)
Focus Control

Autofocus
Manual Focus
Viewfinder & Display
Viewfinder Type

Built-In Electronic (OLED)
Viewfinder resolution

2,360,000 Dot
Viewfinder Size

0.5"
Display Type

Articulating LCD
Display Screen

3.5"
Display Resolution

2,360,000 Dot
Recording
Audio Recording

XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
Horizontal Resolution

2000 TV Lines or More
Recording Modes

DV 4:2:0 8-Bit – 720 x 480i at 59.94 fps [25 Mb/s]
DV 4:2:0 8-Bit – 720 x 480p at 29.97 fps [25 Mb/s]
DV 4:2:0 8-Bit – 720 x 576i at 50 fps [25 Mb/s]
DV 4:2:0 8-Bit – 720 x 576p at 25 fps [25 Mb/s]
MPEG HD420 4:2:0 – 1280 x 720 from 1 to 59.94 fps [35 Mb/s]
MPEG HD420 4:2:0 – 1440 x 1080i at 50/59.94 fps [35 Mb/s]
MPEG HD420 4:2:0 – 1920 x 1080i at 50/59.94 fps [35 Mb/s]
MPEG HD420 4:2:0 – 1920 x 1080p from 1 to 29.97 fps [35 Mb/s]
MPEG HD422 4:2:2 – 1280 x 720 from 1 to 59.94 fps [35 to 50 Mb/s]
MPEG HD422 4:2:2 – 1920 x 1080i at 50/59.94 fps [35 to 50 Mb/s]
MPEG HD422 4:2:2 – 1920 x 1080p from 1 to 29.97 fps [35 to 50 Mb/s]
XAVC-I – 1280 x 720 at 50/59.94 fps [222 Mb/s]
XAVC-I – 1920 x 1080i at 50/59.94 fps [222 Mb/s]
XAVC-I – 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [222 Mb/s]
XAVC-I – 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [600 Mb/s]
XAVC-L – 1280 x 720 from 1 to 59.94 fps [50 Mb/s]
XAVC-L – 1920 x 1080i at 50/59.94 fps [25 to 35 Mb/s]
XAVC-L – 1920 x 1080i at 50/59.94 fps [50 Mb/s]
XAVC-L – 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 Mb/s]
XAVC-L – 1920 x 1080p from 1 to 59.94 fps [50 Mb/s]
XAVC-L – 3840 x 2160 from 1 to 59.94 fps [150 Mb/s]
Video Streaming
Wireless

2.4 / 5 GHz Wi-Fi 5 (802.11ac), NFC
Audio
Built-In Microphone

Stereo
Audio Inputs

1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
2 x XLR 3-Pin Microphone Input
Interface
Other I/O

1 x 2.5 mm Sub-Mini (LANC) Control
1 x BNC (Genlock) Input
1 x BNC (Timecode) Input
1 x BNC (Timecode) Output
1 x Micro-USB Data
1 x RJ45 (LAN) Data
1 x USB-A
1 x USB-C
Environmental
Operating Temperature

32 to 104°F / 0 to 40°C
Storage Temperature

-4 to 140°F / -20 to 60°C
General
Accessory Mounting Threads

1 x Intelligent Hot Shoe
Built-In Light

no
Power
Battery Type

Sony BP-U Series
