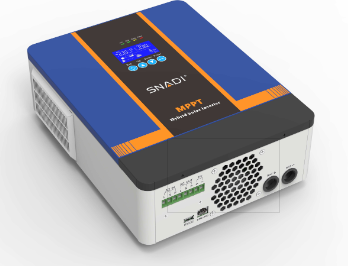

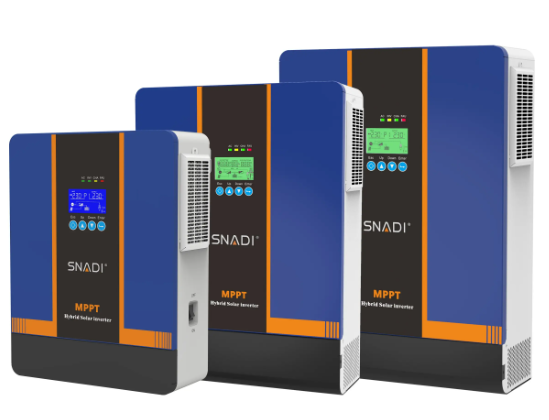

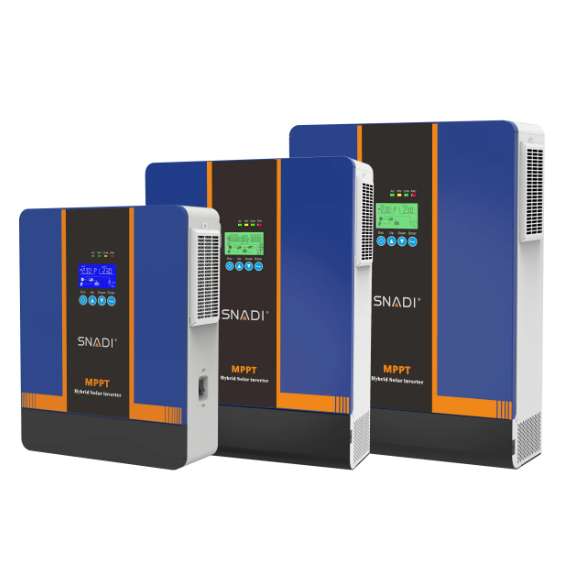

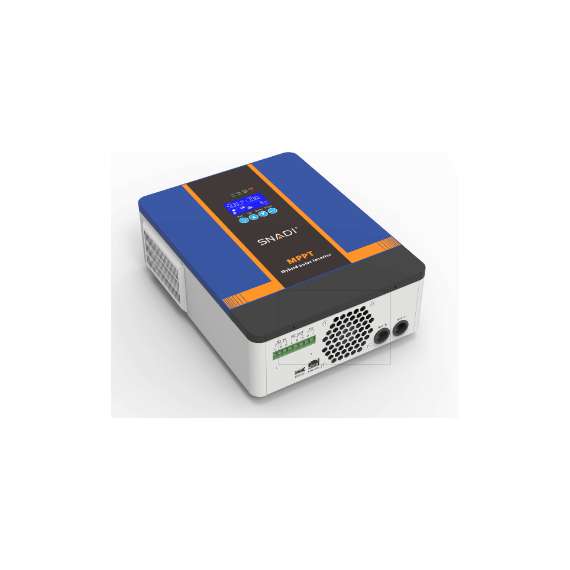

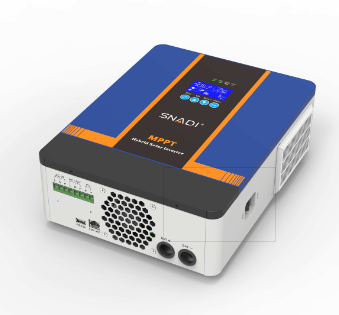

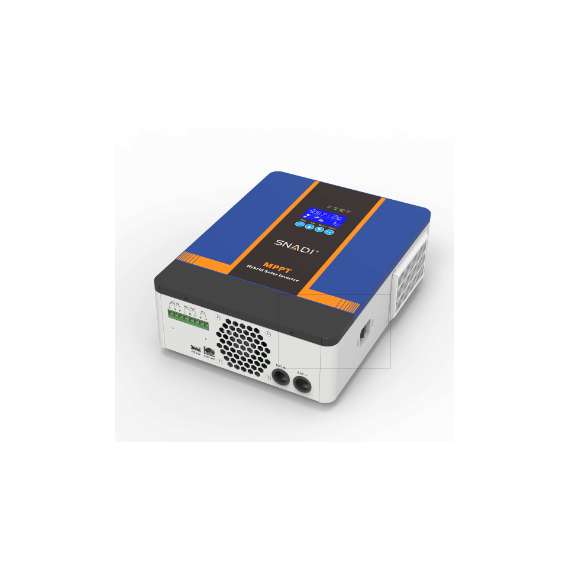

Snadi NKH-6000 6KW IP54 120A High frequency MPPT Hybrid Solar Inverter
NKH IP54 MPPT Solar Inverter features IP54 protection, built-in MPPT (120A/210A), and supports LiFePO4 batteries via RS485. It works with grid or generator power, even without batteries, and allows up to 12 units in parallel. With auto-restart, multiple safety protections, and optional WiFi monitoring, it's reliable and efficient.
Main Future
◆IP54 Protection Level
◆Pure sine wave inverter
◆Built-in MPPT 120A(210A) solar charging controller
◆Compatible work with LiFePO4 battery via RS485
◆Compatible with mains voltage or generator power
◆Can parallel 12units
◆The automatic channel starts when the AC recovers
◆Capable to work without battery
◆Dustproof and waterproof for harsh environment
◆Wifi remote monitoring optional
◆Overload/Over temperature/shortcircuit protection
| Model | NKH-6KW-IP54 | NKH-12KW-IP54 | |
| Class of protection | IP54 | ||
| Rated Power | 6000W | 12000W | |
| Input | Selectable Voltage Range | 85~450VAC(Photovoltaic or Grid) 90~280VAC(Electric Supply) |
|
| Frequency Range | 50/60Hz(Optional) | ||
| Output | AC Voltage Regulation (Batt Mode) | 220/230/240VAC±5% | |
| Surge Power | 12KW | 24KW | |
| Efficiency(Peak)PV to INV | 97% | ||
| Efficiency(Peak)Battery to INV | 93% | ||
| Transfer Time | 10ms typical (UPS);20ms typical(Appliances) | ||
| Overload Capacity | 105% | ||
| Battery & AC Charge | Battery Voltage | 48VDC | |
| Battery Type | Lithium iron phosphate/lead acid | ||
| Maximum Charge Current | 120A | 210A | |
| PV Charge | Maximum PV Array Power | 6000Wp | 12000Wp |
| MPPT Range Operating Voltage | 85~450VAC(Photovoltaic or Grid) 90~280VAC(Electric Supply) |
||
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| Maximum Charge Current | 120A | 210A | |
| AC+PV Charge | Maximum Charge Current | 120A | 210A |
| Physical | Dimensions: D*W*H(mm) | 120*345*443 | 125*525*680 |
| Net Weight(KG) | 13 | 27 | |
| Communication Interface | RS232/RS485/Drycontact/Wi-Fi | ||
| Opera Ting Environment | Humidity | 5~95%Relative Humidity(Non-condensing) | |
| Operating Ambient Temperature | -10~55℃ | ||
| Storage Ambient Temperature | -15~60℃ |
