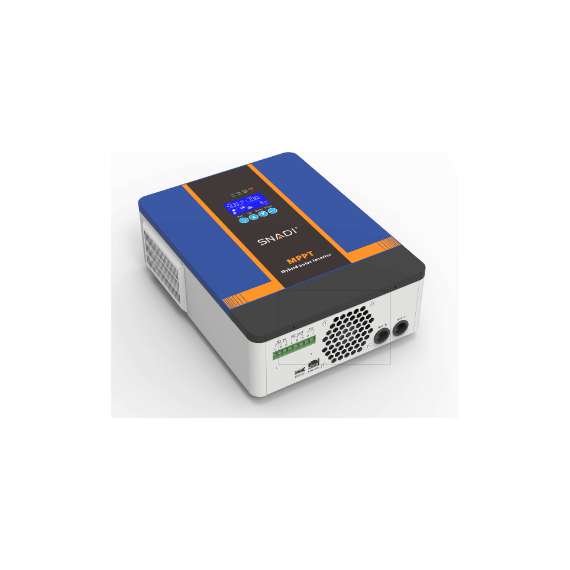

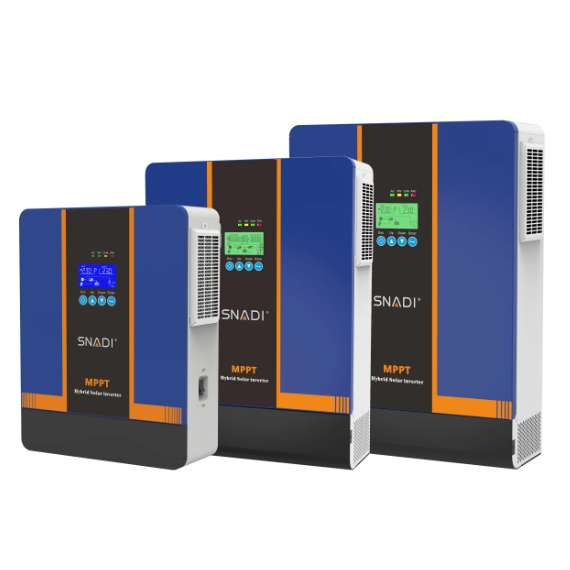

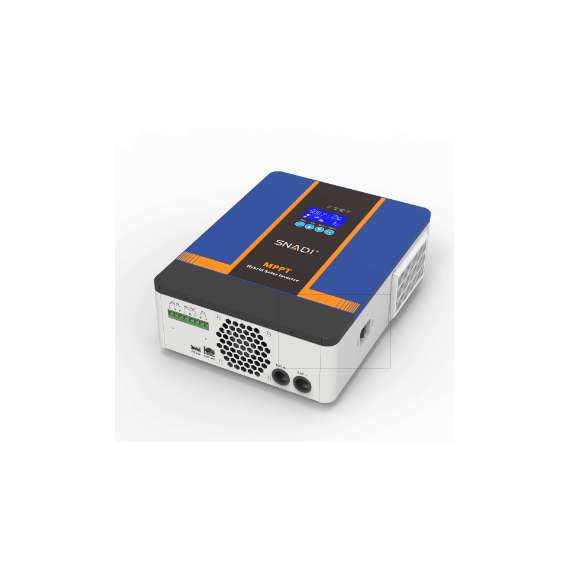

Snadi NKH-11KS 11KW High frequency MPPT Hybrid Solar Inverter
NKH-11KS
Please sign in so that we can notify you about a reply
SNADI's high frequency MPPT hybrid solar inverter is a powerful and efficient solution for residential and commercial solar energy systems. Hybrid solar inverter is the perfect choice for reliable and sustainable energy solutions.
MAIN FEATURES
◆Built-in 1or 2 MPPT
◆Lithum battery activation function by PV or Utility
◆Compatible work with LiFePO4 battery via RS485
◆Pure Sine Wave
◆USB/RS485(/WiFi/GPRS)/Dry node control
◆Small size, light weight, low freight, suitable for Air Frieght
◆Capable to work without battery
◆Wifi remote monitoring potional
◆Support multiple output priority: UTL, SOL, SBU, SUB
◆EQ function to optimize battery performance and extend lifecycle
| Product Specifications | ||
| Model：NKH- | 11KW | |
| Rated Power | 11000W | |
| Input | Voltage | 230VAC/240VAC |
| Selectable Voltage Range | 170-280VAC(For Personal Computers) | |
| 90-280VAC(For Home Appliances) | ||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| Output | AC Voltage Regulation (Batt .Mode) | 220VAC/230VAC ±5% |
| Surge Power | 22KW | |
| Efficiency (Peak)PV to INV | 95% | |
| Efficiency (Peak)Battery to INV | 94% | |
| Transfer Time | 10 ms | |
| Overlord Capacity | 1min@102%-110% Load, 10s@110%-130% Load, 3s@130%-150% Load 2s@150% Load | |
| Battery &AC Charge | Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC | |
| Overcharge Protection | 64VDC | |
| Maximum Charge Current | 120A | |
| Maximum PV Array Power | 5000W*2 | |
| PV Charge | MPPT Range Operating Voltage | 60~500VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charge Current | 160A | |
| Maximum Efficiency | 99% | |
| AC+PV Charge | Maximum Charge Current | 160A |
| Physical | Dimension D”W”H(mm) | 540*403*122 |
| Net Weight(kg) | 15.5 | |
| Communication interface | USB/RS232/RS485 | |
| Opera Ting Environment | Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C-55°C | |
| Storage Temperature | -15°C-60°C |
Condition
- New
Warranty Issuer
- Manufacturer
No reviews found
