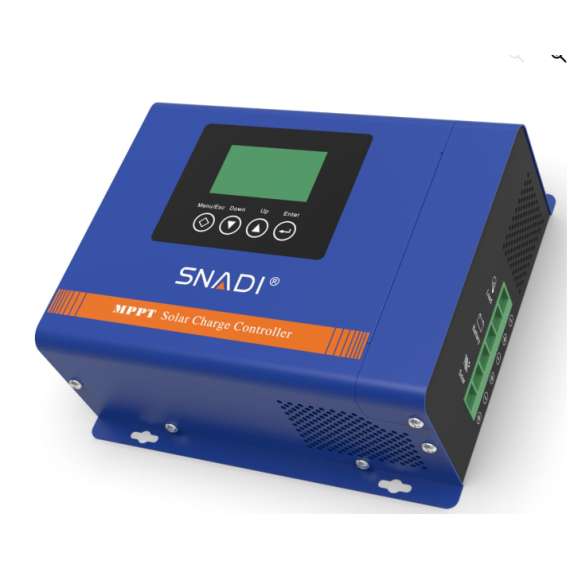

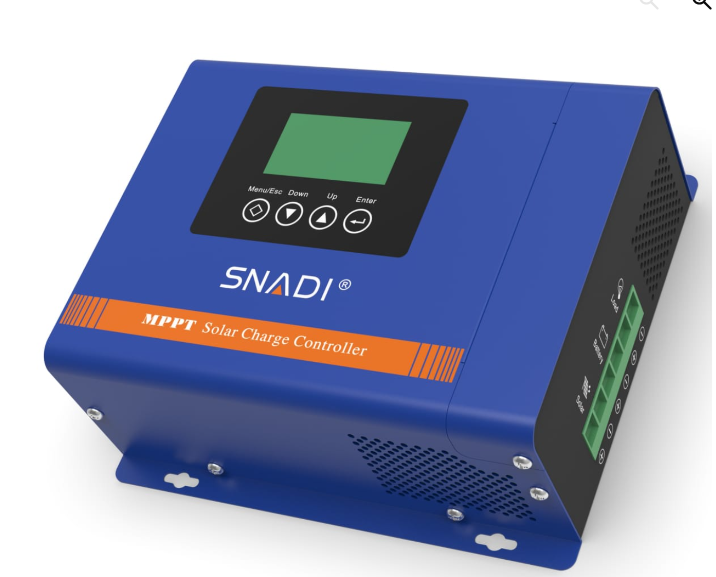

snadi CM-60A solar mppt charge controller
CM-60A
Please sign in so that we can notify you about a reply
| Battery System | MPPT Voltage Range | Max PV Input Power |
|---|---|---|
| 12V | DC 18V – DC 150V | 900W |
| 24V | DC 34V – DC 150V | 1,700W |
| 48V | DC 65V – DC 150V | 3,400W |
- Charging Technology: Maximum Power Point Tracking (MPPT) with three stages: Constant Current (MPPT), Balanced Charging, and Floating Charge.
- Rated Current: 60A.
- System Voltage: 12V / 24V / 48V (Auto-recognition or manual setting).
- MPPT Efficiency: Up to 99% tracking efficiency.
Features & Protection- Battery Compatibility: Supports Lead-acid (Vented, AGM, Gel) and Lithium batteries.
- Display: Smart LCD/touch screen for real-time monitoring of solar input and battery status.
- Cooling: Forced air cooling via temperature-adjusted fans.
- Built-in Protection: Includes overcharge, over-discharge, short circuit, reverse polarity, and over-temperature protection.
Condition
- New
Product Voltage
- 12 V
Warranty Issuer
- Manufacturer
