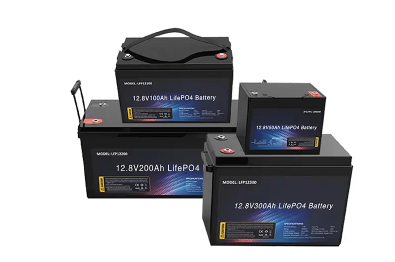

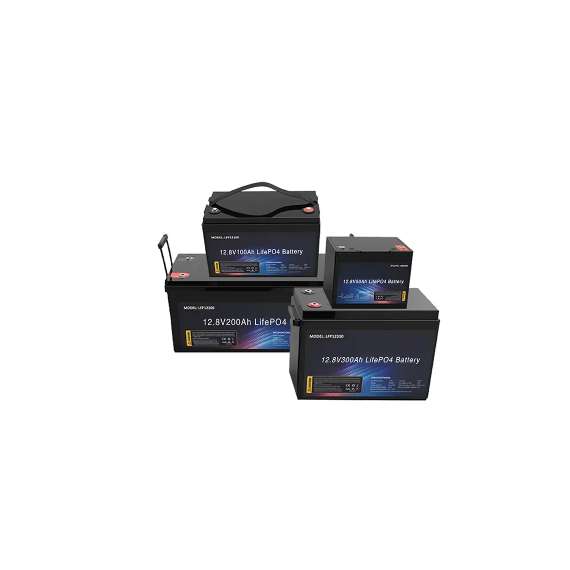

Snadi 12.8V,200AH LiFePO4 solar lithium Battery
12.8V,200AH LiFePO4
Please sign in so that we can notify you about a reply
Environmentally friendly LiFePO4 battery with non-toxic materials, long cycle life, and reliable safety. Built-in BMS offers full protection (over-charge/discharge, over-current, temperature). Compact and lightweight for easy installation and maintenance.
MAIN FEATURES
◆The whole module is non-toxic, non-polluting and environmentally friendly
◆Cathode material is made from LiFePO4 with safety performance andlong cycle life
◆Battery management system(BMS)has protection functions includingover-discharge,over-charge, over-current and high/low temperature
◆Small size and light weight, comfortable for installation and maintenance
| Electrical Voltage | 12.8V | 25.6V | ||||||
| Electrical Specifications | Nominal Capacity | 50AH | 100AH | 200AH | 300AH | 50AH | 100AH | 200AH |
| Energy | 640WH | 1280WH | 2560WH | 3840WH | 1280WH | 2560WH | 5120WH | |
| Resistance | ≤20mΩ | |||||||
| Efficiency | 99% | |||||||
| Self Discharge | Monthly<3% | |||||||
| Discharge Specifications | Maximum Continuous Discharge Current | 50A | 100A | 200A | 200A | 50A | 100A | 200A |
| Peak Discharge Current | 100A | 200A | 400A | 400A | 100A | 200A | 400A | |
| Discharge Cut-off Voltage | 10V | 20V | ||||||
| Charging Specifications | Recommended Charging Current | 25A | 50A | 100A | 100A | 25A | 50A | 100A |
| Maximum Charging Current | 50A | 100A | 200A | 200A | 50A | 100A | 200A | |
| Maximum Charge Voltage | 14.6V | 14.2~14.6V | 29.2V | |||||
| Charging Current (-20~10°C) | ≤0.05°C | |||||||
| Mechanical Specifications | Size (LWH)mm | 229*138*208 | 260*167*210 | 502*186*243 | 384*194*255 | 330*175*220 | 521*238*218 | 521*268*218 |
| Weight(KG) | 7.5 | 12.8 | 22 | 28 | 12 | 22 | 45 | |
| Terminal Type | M8 screw | |||||||
| Housing Material | ABS shell | |||||||
| Protection Grade | IP65 | |||||||
| Cell Type | Square aluminum shell | |||||||
| Temperature Specifications | Discharge Temperature | -20~60°C | ||||||
| Charge Temperature | 0~55°C | |||||||
| Storage Temperature | -20~40°C | |||||||
| BMS High Temperature | 80°C | |||||||
| Reconnect Temperature | 50°C |
