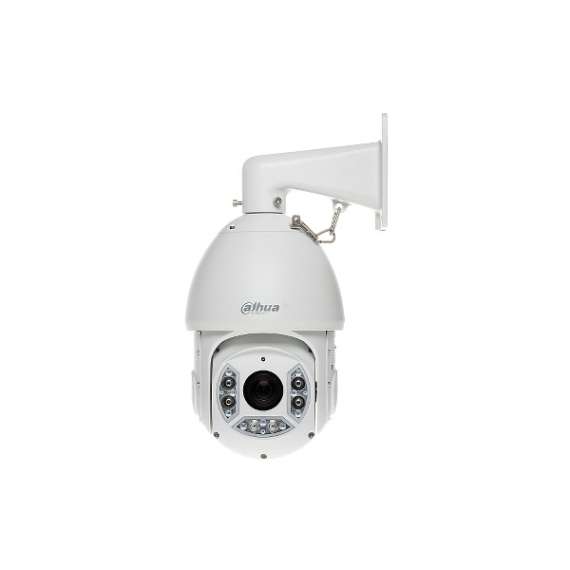

SD6C230T-HN Dahua IP Speed Dome Camera Outdoor – 1080P
![Buy SD6C230T-HN Dahua IP Speed Dome Camera Outdoor – 1080P in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/87/SD6C230T-HN.jpg.jpg "Buy SD6C230T-HN Dahua IP Speed Dome Camera Outdoor – 1080P in [storefront]"){kind=small}
![Buy SD6C230T-HN Dahua IP Speed Dome Camera Outdoor – 1080P in [storefront]](images/detailed/87/SD6C230T-HN.jpg "Buy SD6C230T-HN Dahua IP Speed Dome Camera Outdoor – 1080P in [storefront]")
SD6C230T-HN
Please sign in so that we can notify you about a reply
Description
| Standard: | TCP/IP |
| Sensor: | 1/2.8 ” Progressive Scan Exmor CMOS |
| Digital Image Processor: | Texas Instruments DaVinci |
| Matrix size: | 2.0 Mpx |
| Resolution: | 1920 x 1080 – 1080p 1280 x 720 – 720p 704 x 576 – D1 |
| Scanning system: | Progressive |
| Lens: | 4.5 … 135 mm |
| View angle: | 68 ° … 2.7 ° (manufacturer data) 59 ° … 2.8 ° (our tests result) |
| Optical zoom: | x 30 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 100 m |
| S/N ratio: | > 50 dB (AGC off) |
| Video output: | 1 Vpp / 75 Ω |
| Preset rotation speed: | max. 240 °/s |
| Rotation speed (manual control): | 0.1 °/s … 160 °/s (horizontal) 0.1 °/s … 120 °/s (vertical) |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -15 ° … 90 ° |
| RS-485 interface: |  |
| Protocols: | Pelco-D, Pelco-P, DH-SD Auto detection |
| Number of presets: | 300 |
| Horizontal scan: | |
| Route settings: | 8 |
| Image compression method: | H.264H / H.264B / H.264 / MJPEG |
| Bitrate: | 32 … 8192 kbps – H.264 320 … 16384 kbps – MJPEG |
| Alarm inputs / outputs: | 2 / 1 |
| Audio: |
|
| Main stream frame rate: | 1 … 25 fps – 1080p 1 … 25 fps – 720p |
| Memory card slot: | Micro SD memory cards up to 128GB support (possible local recording) |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | 2.4 |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P)
There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus, wDMSS plus |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=1 – Sub stream |
| Main features: |
|
| Power supply: | 24 V AC / 3 A (power adapter included) |
| Housing: | Speed Dome Metal |
| Color: | White |
| Operation temp: | -40 °C … 50 °C |
| “Index of Protection”: | IP66 |
| Weight: | 5.42 kg (with bracket) |
| Dimensions: | 204 x 360 mm x 275 mm (with bracket) |
| Supported languages: | English, Polish |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Condition
- New
MP
2MP
PTZ
Yes
Warranty Issuer
- Manufacturer
No reviews found
