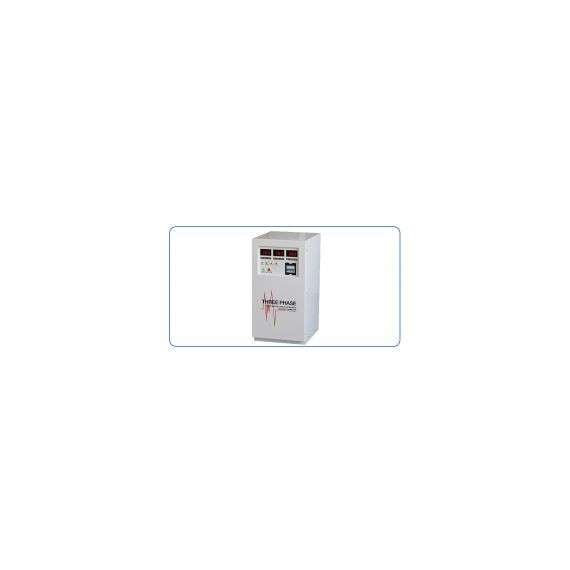

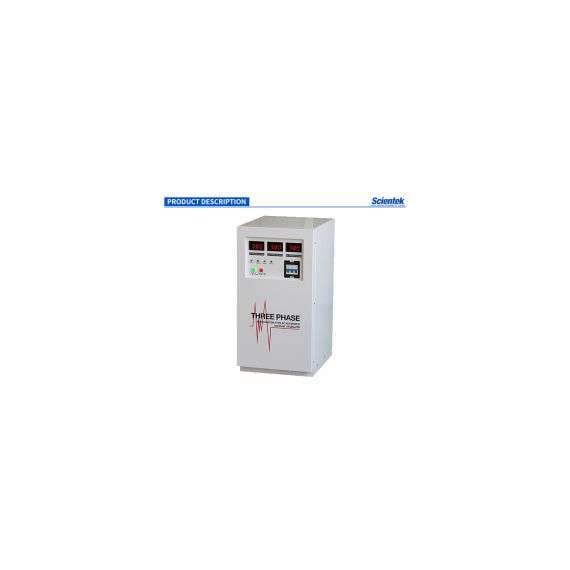

Scientek SVC33-50KVA 3 Phase In 3 Phase Out 50KVA, 400VAC/50HZ Servo Stabilizer

Write a review

Ksh 320,000

Buy

Write a review

CODE :

SVC33-50KVA

Ksh 320,000

(Ksh 371,200 Inc VAT)

+ −

ConditionNew Product Voltage 45,001- 50,000 VA Warranty IssuerManufacturer

Ask a question

Power Factor	0.6~1.0
Operating Voltage Range	208~502VAC
Regulation Voltage Range	260~430VAC
Frequency	50Hz/60Hz
Connection Type	Input terminal block
Output Voltage	380VAC
Operating Voltage	330~430VAC
High Cut Voltage	430V
Low Cut Voltage	330V
Frequency	50Hz/60Hz
Safety Cycle	6 Seconds / 180 Seconds Selectable
Connection Type	Output terminal block
Regulation %	± 3%(when input 260~430VAC)
Number of Taps	Stepless
Transformer Type	Servo Motor Toroidal auto transformer
Regulation Type	Servo motor type
INPUT	This LED light ON when the input voltage in phase A,B & C are within the acceptable range. This LED goes off if any phase is over voltage, under voltage or there is a phase loss.
POWER	This LED light ON when the device switches on, it goes off when the device switches off.
DELAY	This LED light ON when the device entering delaying mode, it goes off if the delay cycle complete.
OUTPUT	This LED light ON when the device has a output voltage, it goes off if the device is entering delay mode, or protection takes place.
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
