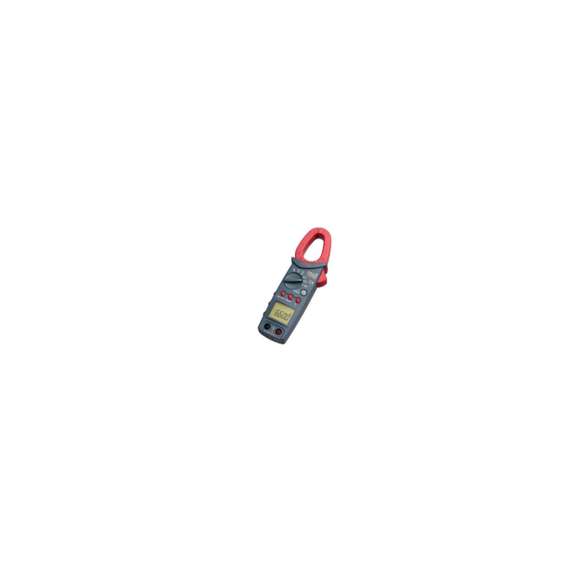

Sanwa DCM660R Clamp Meter
![Buy Sanwa DCM660R Clamp Meter in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/141/Sanwa_11.png.jpg "Buy Sanwa DCM660R Clamp Meter in [storefront]"){kind=small}
![Buy Sanwa DCM660R Clamp Meter in [storefront]](images/detailed/141/Sanwa_11.png "Buy Sanwa DCM660R Clamp Meter in [storefront]")
Please sign in so that we can notify you about a reply
| Function | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| ACA | 66/660A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Frequency (A) | 660/6.6k/30k | ±(0.2%+1) | 0.1Hz | |
| Frequency (V) | 660/6.6k/66k/100k | ±(0.2%+1) | 0.1Hz | |
| Resistance | 660Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 30Ω Open voltage: approx. 1.2V |
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6600 |
| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 55 hrs.（Alkaline battery/Backlight off) |
| Size/Mass | H208×W69×D38mm/Approx. 265g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
