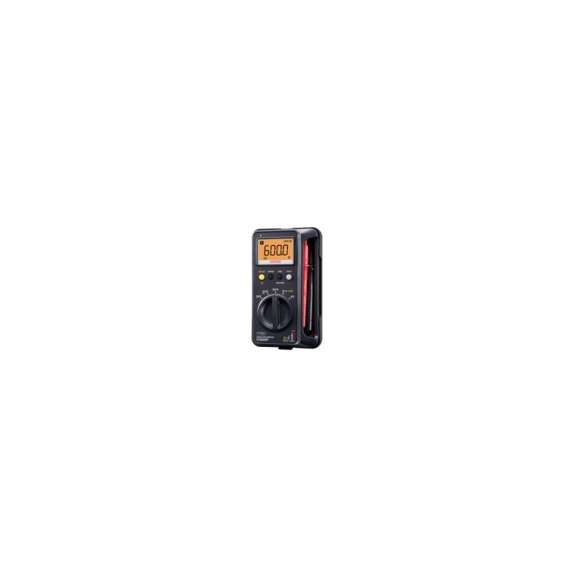

Sanwa CD800f Digital Multimeter

This instrument is a digital multimeter with rms value
response, designed for measurements within the range
specified as CAT.IV 1000 V in IEC61010.
Operation method
AC measuring method
Display
Sampling rate
Overload
Range selection
Polarity switching
Operating temperature/ humidity
Storage temperature/ humidity
Battery
Auto Power Save
Size / Mass
Safety standards
Standard accessories included
Δ - Σ method
True RMS method (AC coupling)
Max. 6000 counts
Max. approx. 5 times/sec.
“ OL” mark indication on digital display
Auto and Manual
Auto (“-” indicated when negative voltage is input)
-10 ºC to 40 ºC.
Humidity range is as follows (without condensation):
Max. 80 %RH at 5 ºC to 31 ºC, decreasing linearly to 50 %RH at 40 ºC.
-20 ºC to 40 ºC: ≤80 %RH (without condensation).
40 ºC to 50 ºC: ≤70 %RH (without condensation).
(Batteries should be removed when the instrument is not to be
used for a long period.)
LR03 (“AAA”-size alkaline battery)1.5 V × 2
Power Save in about 15 minutes after last operation. Typ. 20 μA
166 (H) x 100 (W) x 43 (D) mm, about 360 grams (incl. batteries)
IEC61010-1, IEC61010-2-030, IEC61010-2-33, IEC61010-31
CAT.IV 1000 V
Instruction manual, “AAA”-size alkaline battery x 2, hand strap
SPECIFICATIONS
●6000 counts
●AC True RMS
●Data hold / Range hold
●Relative value measurement
●MAX/MIN value recording mode
●LCD with backlight
●Auto power save (15min.) (cancelable)
●Attachment body cover for protection
