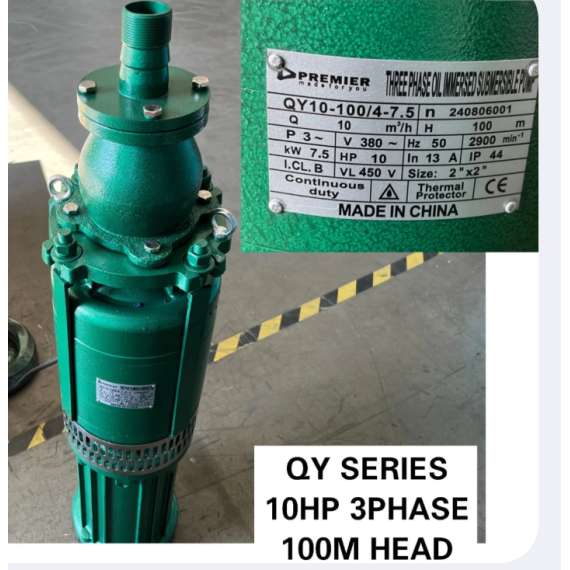

Premier QY Series 10HP 3Phase 100M electric submersible water pump
QY Series
Please sign in so that we can notify you about a reply
Specifications
- Model Number: QY10-100/4-7.5
- Motor Power: 7.5 kW (10 Horsepower)
- Max Head (Lift): 100 meters (approx. 328 feet)
- Rated Flow Rate: 10 cubic meters per hour
- Rotation Speed: 2900 revolutions per minute
Electrical & Mechanical Specs
- Power Supply: 3-Phase, 380V, 50Hz
- Rated Current (In): 13 Amperes
- Outlet/Discharge Size: 2 inches x 2 inches
- Protection Rating: IP 44 (protected against solid objects over 1mm and water splashes)
- Duty Cycle: Continuous duty
