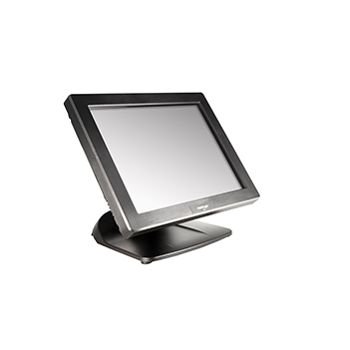

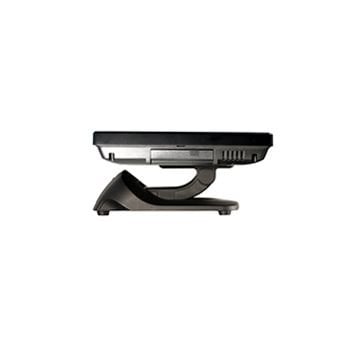

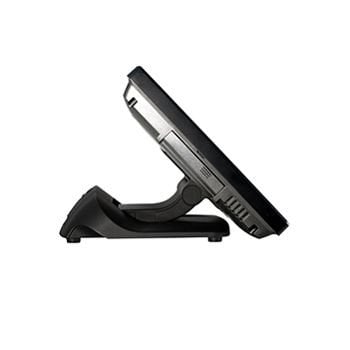

Posiflex XT-3915IR White All-in-One Touch Terminal

System-Configuration XT-3915IR-G2
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM slot x 2, max. 32GB
Storage Device M.2 connector x 2 (support SATA signal only)
RAID Function N/A
Intel vPro Support N/A
TPM TPM 2.0
Power Supply 12V/60W
OS Support Windows 10 IoT LTSC
Windows 11 IoT LTSC

Display & Touch
LCD 15" TFT LCD
Resolution 1024 x 768
Touch IR touch

I/O Expansion
Serial Port DB9 x 3 + RJ50 x 1 + COM5/COM6 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM 4
Parallel Port via optional conversion cable through service window
Standard USB Port USB 3.0 x 3 + USB 2.0 x 4
PoweredUSB Port N/A
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1 (12V support for Posiflex monitors)
CR Port RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer
PS2 Port via optional conversion cable through service window
UPS Port Yes, for optional UPS battery
Audio Internal 2W speaker x 1
Expansion Slot M.2 slot x 1

Dimension
Dimension (W x D x H in mm) 372 x 252.7 x 320
Weight (N. W. in kg) 6

Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH

Built-In Options
WiFi module M.2 WiFi/BT module
Camera Module N/A
Printer Module N/A
AG Glass N/A

Attachment Options
POS Monitor PCAP touch TFT LCD: 9.7"/14"/15"
Non-touch TFT LCD: 7"/9.7"/12.1"/14"/15"
Resistive touch TFT LCD: 15"
Line Display 2 x 20 rear-mount VFD/LCD customer line display;
7" color LCD graphical customer line display
External UPS Pack for RT Series N/A
Attachment MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad
