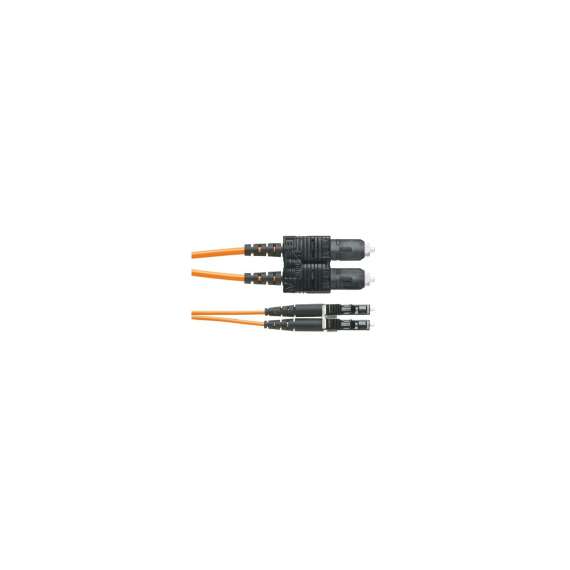

Panduit LC-SC 3M Fiber Optic Patch Cord
![Buy Panduit LC-SC 3M Fiber Optic Patch Cord in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/51/d22def38cf05ebe88b5ff507cf2e8efa.png.jpg "Buy Panduit LC-SC 3M Fiber Optic Patch Cord in [storefront]"){kind=small}
![Buy Panduit LC-SC 3M Fiber Optic Patch Cord in [storefront]](images/detailed/51/d22def38cf05ebe88b5ff507cf2e8efa.png "Buy Panduit LC-SC 3M Fiber Optic Patch Cord in [storefront]")
Overview
NKFPX2ELLSSM003
NetKey 2-fiber OM3 LC to SC patch cord low smoke zero halogen (LSZH) rated with 1.6mm jacketed cable.
Specifications
|
Fiber Type |
OM3 |
|
Number of Fibers |
2 |
|
Connector 1 Type |
LC Duplex |
|
Connector 2 Type |
SC Duplex |
|
Flammability Rating |
LSZH |
|
Maximum Connector Insertion Loss (dB) |
0.3 |
|
Minimum Connector Return Loss (dB) |
26 |
|
Overall Length (ft.) |
9.84 |
|
Overall Length (m) |
3 |
|
Standards Met |
TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
|
Assembly Length Range |
0-9 m (0-32 ft) |
|
Cable Length Range |
0-9 m (0-32 ft) |
|
Compatible Fiber |
OM3 50/125µm |
|
Fiber Cable Size |
1.6mm |
|
Length (ft.) |
9.84 |
|
Part Features |
Riser rated patch cords support installations that require this flame rating in specific environments |
