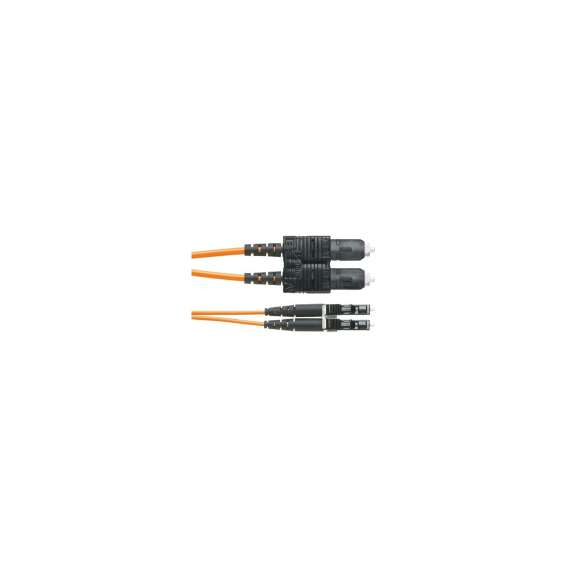

Panduit LC-SC 1M Fiber Optic Patch Cord
![Buy Panduit LC-SC 1M Fiber Optic Patch Cord in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/51/e85640edf09b8126bcccbb322bd41a29.png.jpg "Buy Panduit LC-SC 1M Fiber Optic Patch Cord in [storefront]"){kind=small}
![Buy Panduit LC-SC 1M Fiber Optic Patch Cord in [storefront]](images/detailed/51/e85640edf09b8126bcccbb322bd41a29.png "Buy Panduit LC-SC 1M Fiber Optic Patch Cord in [storefront]")
NKFPX2ELLSSM001
Please sign in so that we can notify you about a reply
Overview
NKFPX2ELLSSM001
NetKey 2-fiber OM3 LC to SC patch cord low smoke zero halogen (LSZH) rated with1.6mm jacketed cable.
Specifications
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 1 |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Assembly Length Range | 0-9 m (0-32 ft) |
| Cable Length Range | 0-9 m (0-32 ft) |
| Compatible Fiber | OM3 50/125µm |
| Fiber Cable Size | 1.6mm |
| Length (ft.) | 3.28 |
| Part Features | Riser rated patch cords support installations that require this flame rating in specific environments |
