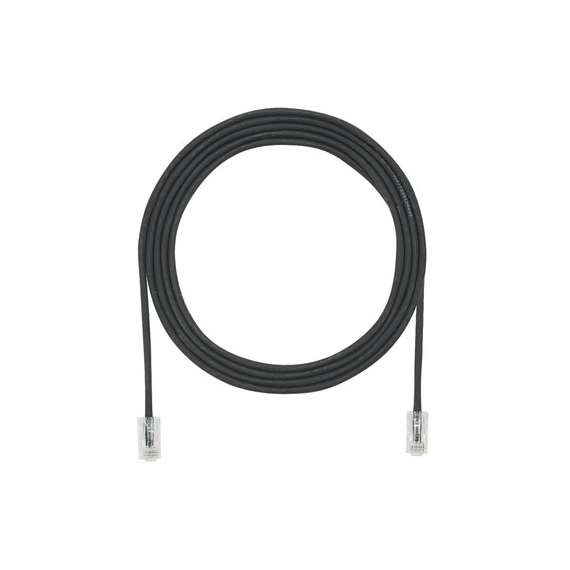

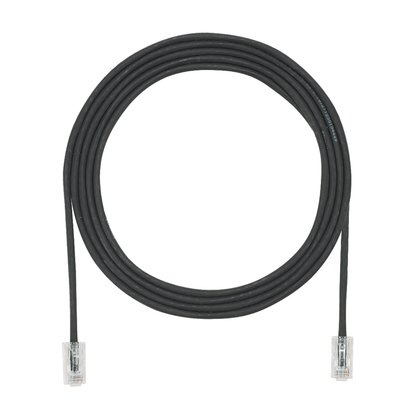

Panduit 5M CAT 6A F/UTP Patch Cord
![Buy Panduit 5M CAT 6A F/UTP Patch Cord in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/51/99083aeecd48400b2b6eb61acdf36779.jpg.jpg "Buy Panduit 5M CAT 6A F/UTP Patch Cord in [storefront]"){kind=small}
![Buy Panduit 5M CAT 6A F/UTP Patch Cord in [storefront]](images/detailed/51/99083aeecd48400b2b6eb61acdf36779.jpg "Buy Panduit 5M CAT 6A F/UTP Patch Cord in [storefront]")
Please sign in so that we can notify you about a reply
| Application | (1) Stacking switched and switch-to-switch links (2) Aggregation of Gigabit Ethernet channels (3) Streaming video (4) Scientific modeling (5) Storage area networks (6) Real-time intensive financial transactions (7) Animation (8) Medical imaging |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 16.4 |
| Overall Length (m) | 5 |
| Nominal Cable Outside Diameter (In.) | 0.25 |
| Nominal Cable Outside Diameter (mm) | 6.4 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Off-White |
| Color | Off-White |
| Sub Brand | PanNet |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| CE Compliant | Yes |
| Cable Color | Off-White |
| Cable Type | F/UTP |
| Conductor Material | Copper |
| Length (ft.) | 16.40 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Measurement System | Meters (Rest of World) |
| Minimum Installation Temperature (°C) | 70 |
| Minimum Installation Temperature (°F) | -40 |
| Termination End 1 | Modular Plug |
| Termination End 2 | Modular Plug |
