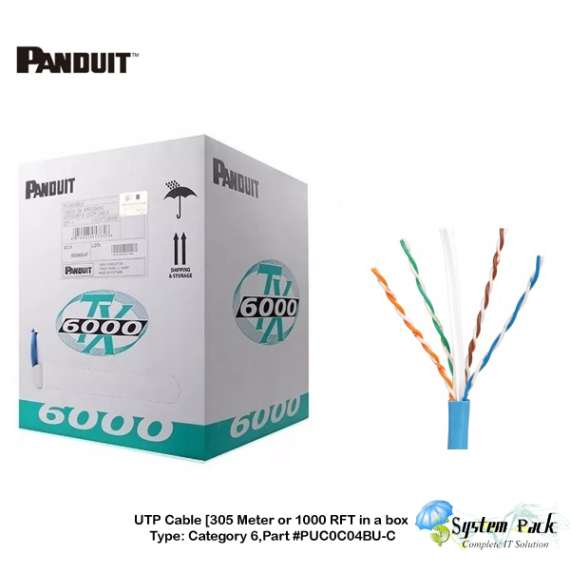

Panduit 305 Meter CAT 6 UTP Copper Cable
![Buy Panduit 305 Meter CAT 6 UTP Copper Cable in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/112/Panduit-1.png.jpg "Buy Panduit 305 Meter CAT 6 UTP Copper Cable in [storefront]"){kind=small}
![Buy Panduit 305 Meter CAT 6 UTP Copper Cable in [storefront]](images/detailed/112/Panduit-1.png "Buy Panduit 305 Meter CAT 6 UTP Copper Cable in [storefront]")
NUC6C04BU-CE
Please sign in so that we can notify you about a reply
Overview
Copper cable, category 6 UTP, CM, 4-pair, conductors are 24 AWG, twisted in pairs, separated by an integrated pair divider and protected by a PVC jacket, blue.
Specifications
| Sub Brand | NetKey |
| Performance Level | Category 6 |
| Cable Construction | Category 6 U/UTP |
| Flammability Rating | CM |
| Jacket Material | Polyvinyl chloride |
| Nominal Cable Outside Diameter (In.) | NA |
| Nominal Cable Outside Diameter (mm) | NA |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Maximum Installation Tension (lb) | NA |
| Maximum Installation Tension (N) | NA |
| Bend Radius (In.) | NA |
| Bend Radius (mm) | NA |
| Number of Pairs | 4 |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (mm) | NA |
| Insulation Diameter (In.) | 0.04 |
| Insulation Diameter (mm) | 1 |
| Maximum Voltage (V) | NA |
| Standards Met | ANSI/TIA-568-C.2 Category 6, ISO 11801 2nd Edition Class E channel requirements, IEEE 802.3af and IEEE 802.3at for PoE applications, IEC 60332,60754,61034 and UL 1685, 1666 |
| Color | Blue |
| Overall Length (ft.) | 1000 |
| Length (ft.) | 1000 |
| CE Compliant | EuroClass Eca |
| Application | Indoor |
| CE Marking | Yes |
| Cable Type | U/UTP |
| Nominal Diameter (In.) | 0.222 |
| Nominal Diameter (mm) | 5.6 |
| Operating Temperature | -20°C - 60°C (-4°F - 140°F) |
| Package Type | Easy-payout carton |
| Part Features | Descending length cable markings - easy identification of remaining cable reduces installation time and cable scrap, Easy payout reel - ensures proper performance and provides quick installation |
| Weight (Kg) | 12 |
