Nutek UT1032 Portable Ultrasound
![Buy Nutek UT1032 Portable Ultrasound in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/71/UT1032_packaging_MDDX.JPG.jpg "Buy Nutek UT1032 Portable Ultrasound in [storefront]"){kind=small}
![Buy Nutek UT1032 Portable Ultrasound in [storefront]](images/detailed/71/UT1032_packaging_MDDX.JPG "Buy Nutek UT1032 Portable Ultrasound in [storefront]")

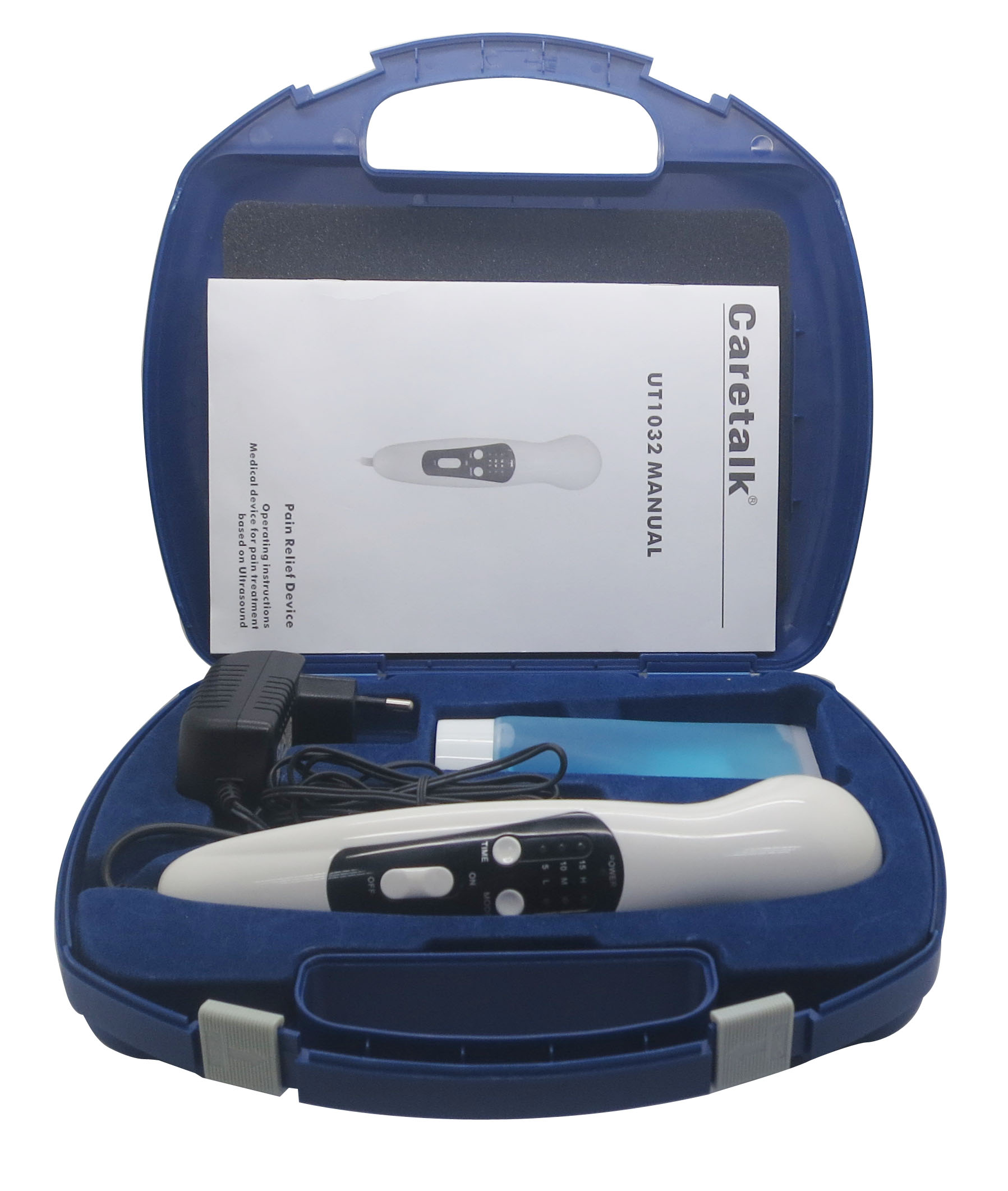

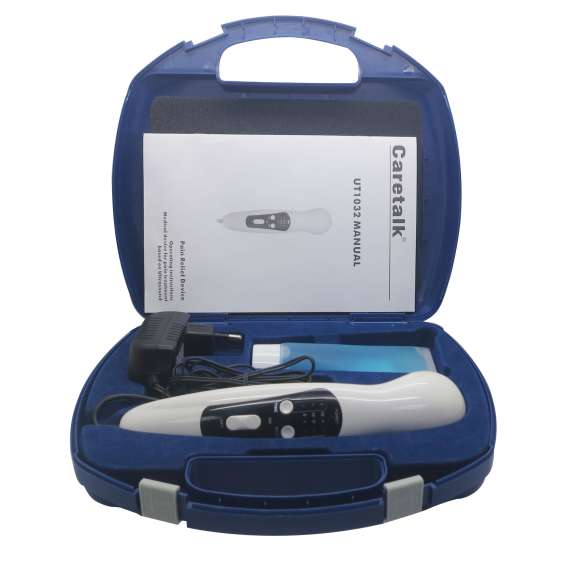

UltraRelief 1.0 is a strong and durable ultrasound in a portable carrying case, gel and an AC adapter.
The newly improved UltraRelief 1.0 is now equipped with a preheating function and a continuous mode (100% duty cycle) setting.
The UltraRelief 1.0 is a portable ultrasonic therapeutic device that produces pulsed high frequency sound waves that are transferred to a specific body area through a sound head probe.
Therapeutic ultrasound therapy is found to assist in relieving pain and reducing muscle spasms. The preheating function warms up the sound head applicator for increased patient and user comfort.
Features
-
Preheating Function for comfort
-
Pulsed and Continuous Modes
-
3 Output Intensities
-
3 Timer Settings
The Basic Parameters
| Ultrasound Modulation Frequency | 1.0MHz±10% |
| Output power(Max) |
6.4W±20% (Modulation duty cycle at100%) |
| Pulse Repetition Rate |
100Hz±10% |
| Modulation Duty Cycle |
L (5%), M (50%), H (100%) |
| Effective Radiating Area |
4.0cm2± 20% |
| Waveform | Pulsed |
| BNR (Max) | 1.6Wcm²±20% (Modulation duty scycle at 100%) |
| Effective Intensity | L: 0.08W/cm²±20% M: 0.80Wcm²± H:1.60Wcm²±20% |
| Working Time | Adjustable at 5 minutes, 10 minutes, 15 minutes |
| Preheat Temperature | Max. 35±5 degree centigrade (NOTE: Actual preheat temperature will be influenced by the environmental temperature and preheat time) |
| Preheat Time | Max. 3 minutes |
| Dimension | 202 mm (L) x 49 mm (W) x 70 mm (H) |
| Weight | 193g (without adapter) |
| Material of Applicator | Aluminum Alloy |
| Beam Type | Collimated |
| Degree of Protection against Water | IPX7 (Only for Treatment Head) |
| Power Adapter |
Input: voltage: AC 100--240V Frequency: 50Hz/60Hz Output: voltage: DC 15V, Max. Currency: 1.2A |
