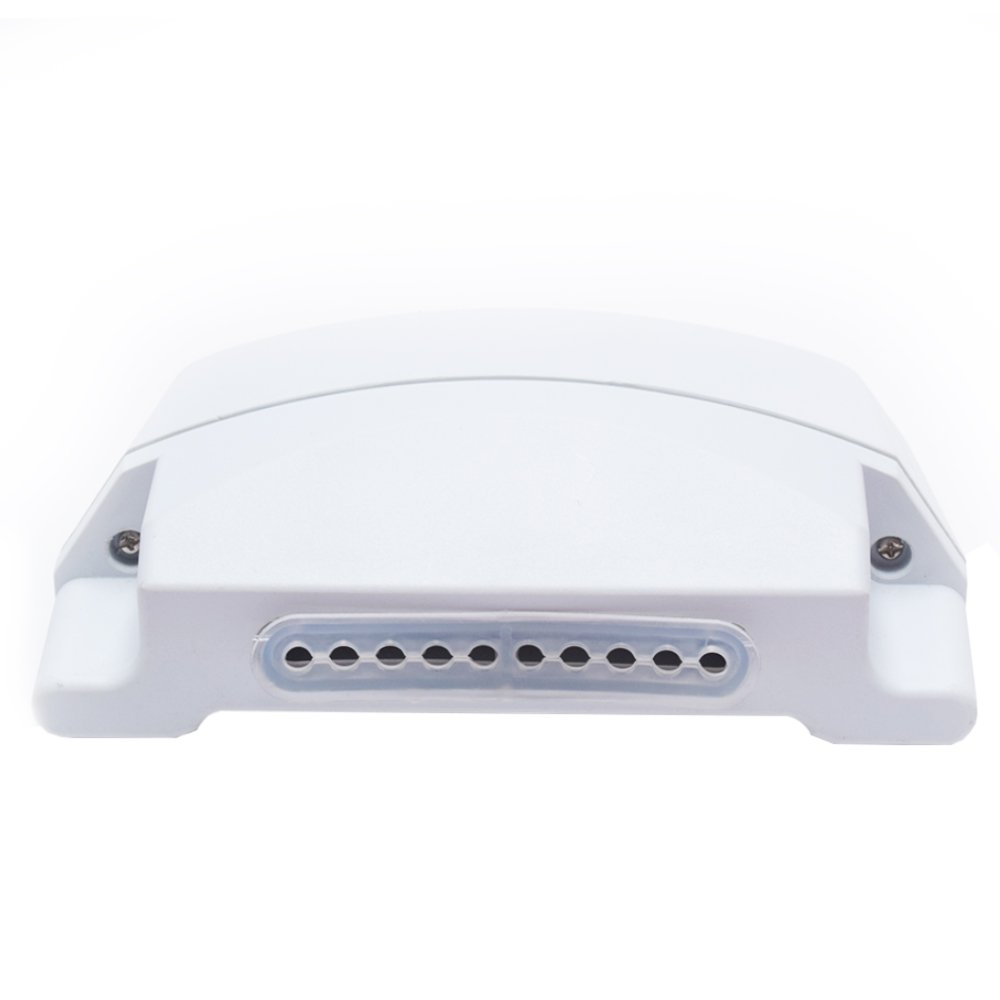

Netstar NS-RP071P-OD 7 X 10/100 Base T Reverse PoE Ports (RpoE) Switch

NETSTAR switch has intelligent Power management feature solving a major problem of powering the device for ISPs. This switch can be powered using Remote Power from customer end using specially designed reliable NETMODEM from us or any standard PoE Injector (24V DC, 0.75 AMP). This eliminates the need to arrange for power at building top and no UPS is needed / no money to be paid to society/power providing customer. This saves lot of MONEY for ISPs and improves service delivery with uninterrupted service to the customer

Reverse PoE Technology: 8 Port 10/100Mbps Switch which is latest generation of fast Ethernet Reverse PoE switching technology. It contains 7 Downlink 10/100Base-TX ports (Reverse PoE Ports) plus one UPLINK 10/100BaseT Port (PoE OUT Port, 24V) (Other PoE OUT Voltage available 12V, 48V).

Intelligent Power Management Feature: Switch works on Intelligent Power Management Feature (IPM), IPM enable switch to source power from customer’s Net modem. (Sourced from us or any standard PoE Injector (24V DC)) under reverse PoE Technology and this eliminates need of any external source for electricity /UPS/Power Providing by Customer. This saves money and creates convenience to the operator (ISP) with uninterrupted service to the customer.

Supports Auto-Negotiation: Each of the Switch’s ports automatically detect whether connected network devices are running at 10Mbps or 100Mbps and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly ensuring easy and hassle-free operation. Supports Non-Blocking

Wire Speed: The Switch forwards and receives traffic seamlessly with its non-blocking wire-speed. Every port of the Switch supports speeds up to 200Mbps in full-duplex mode simultaneously, providing full wire speed to connected devices and allowing you to run a high speed network smoothly.

Ethernet Connector RJ45

Jacks (8 Ports) 10/100Base-TX with Auto-MDIX

Standards IEEE Std. 802.3 10BASE-T 10Mbps, Half/Full Duplex; Protocols

Transmission Method MAC Address Packet Buffer

Maximum Forwarding Packet Length Filtering / Forwarding Rates Network Cable LEDs Power Over Ethernet Injector: Power Supply (IN) No. of Ethernet Ports that can Power ON the NetstarSwitch Power Over Ethernet Injector: Power OUT to external compatible PoE device(CPE) Ethernet Devices that can be powered CAT-5 Cable Data Lines CAT-5 Cable Power Lines Power consumption Operating Temperature Storage environment

Operating Humidity Dimensions Weight for Outdoor Netstar Switch Uplink : 1-ports PoE Injector (Data + Power OUT)

Downlink : 7-ports PoE PD (Data + Power IN) IEEE Std. 802.3u 100BASE-TX, 10/100Mbps, Half/Full Duplex IEEE Std. 802.3x Flow control and Back-pressure. IEEE Std. 802.3az Energy Efficient Ethernet CSMA/CD Store and Forward 1K MAC address Embedded 448K bits packet buffer 1536 bytes 100Mbps Port – 148,800pps 10Mbps Port – 14,880pps 4-pair UTP/STP Cat 5 cable Link/Activity per Ethernet port Power: On/Off for Switch Power: On/Off for PoE Injector Power over Ethernet 24V @ 18W on Spare Pair (to supply power to the Netstar switch as well as a compatible PoE device (e.g. CPE)) Anyone/All of the seven Downlink Ports Power over Ethernet Injector on Four Pair CablePower over Ethernet Injector on Four Pair Cable

Voltage : 18-24V Max Power : 10W Pair 1: Pins 1/2 , Pair 2: Pins3/6 Single + VDC: Pins 4/5 , -VDC: Pins 7/8 2 Watt (Switch) 5 Watt (PoE Injector) 0° to 50°C 0° to 75°C Widht : 19Cm ,Height : 6 Cm., Depth : 14Cm. 20% to 95% (non-condensing) 400gm.
