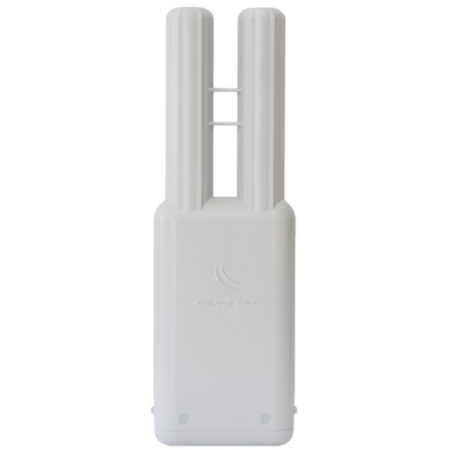

Mikrotik RBOmnitikUPA-5HPnD Dual Chain Antenna

OmniTIK 5 PoE is weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal – or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!

Box contains: OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter

Product Specifications
Details
Product code    RBOmniTikUPA-5HnD
CPU nominal frequency    600 MHz
CPU core count    1
Size of RAM    128 MB
Architecture    MIPS-BE
10/100 Ethernet ports    5
Wireless chip model    AR9344
Wireless standards    802.11a/n
Number of USB ports    1
PoE in    Yes
Supported input voltage    11 V – 30 V
PoE out    Yes
Voltage Monitor    Yes
PCB temperature monitor    Yes
Dimensions    368x125x55mm
Operating System    RouterOS
Tested ambient temperature    -30 .. +70C
License level    5
Antenna gain DBI    7.5
CPU    AR9344
Max Power consumption    11W
USB slot type    USB type A
Number of chains    2
Storage type    FLASH
Storage size    16 MB
