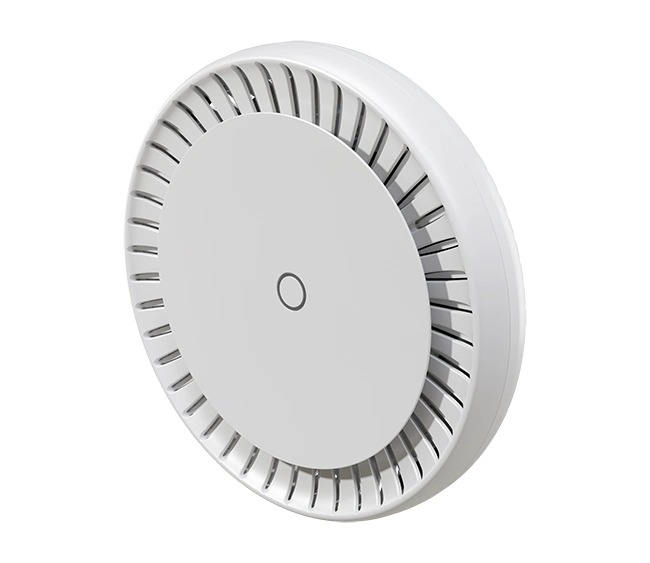

MikroTik cAP ax AX1800 cAPGi-5HaxD2HaxD Dual-Band Wi-Fi 6 Ceiling Access Point

The MikroTik cAP ax is a high-performance Wi-Fi 6 ceiling-mounted access point designed for reliable wireless connectivity in offices, hotels, schools, and other high-density environments. It delivers fast dual-band performance, advanced security, and centralised management with CAPsMAN.

Specifications
  • Brand: MikroTik
  • Model: cAPGi-5HaxD2HaxD (cAP ax)
  • Product Type: Ceiling-Mounted Wireless Access Point
  • Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
  • Wireless Bands: Dual-Band 2.4GHz and 5GHz
  • Wireless Configuration: 2×2 MIMO (Dual-Chain) on both 2.4GHz and 5GHz
  • AX Speed Class: AX1800
  • CPU: Qualcomm IPQ-6010 Quad-Core 1.8GHz
  • Memory: 1GB DDR3L RAM
  • Storage: 128MB NAND Flash

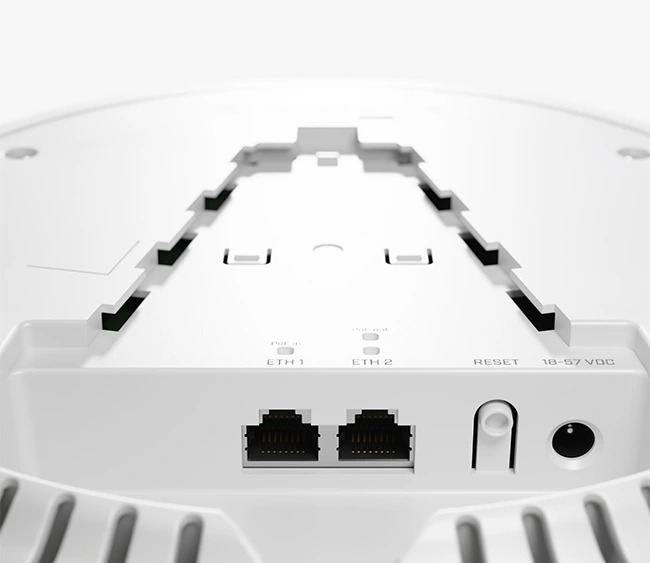

  • Ethernet Ports: 2 × Gigabit RJ45 (10/100/1000 Mbps)
  • Power Input: 18–57V DC, 802.3af/at PoE-In, DC Jack
  • PoE Output: Passive PoE-Out on Ether2 (up to 57V, subject to input voltage)
  • Antenna Gain: 5.5 dBi
  • Operating System: MikroTik RouterOS v7 (License Level 4)
  • Wireless Security: WPA2-PSK, WPA3-PSK, WPA3-EAP, OWE, 802.11r Fast Roaming
  • Management: CAPsMAN centralised management, WebFig, WinBox, CLI, API, Mobile App
  • Operating Temperature: -40°C to +70°C
  • Dimensions: 228 × 48mm
  • Maximum Power Consumption: 36W (11W without PoE-Out devices)
  • Included Accessories: Ceiling mount, mounting bracket, fastening kit, Gigabit PoE injector, 48V 0.95A power adapter
  • Features: Wi-Fi 6 technology, quad-core processor, seamless roaming, PoE-In and PoE-Out, hidden ceiling design, enterprise-grade performance, hardware IPsec acceleration, WireGuard VPN support, and centralised wireless management.
  • Application / Use Case: Ideal for offices, hotels, schools, hospitals, retail stores, conference centres, shopping malls, and other high-density wireless environments.
  • Warranty: Standard manufacturer warranty
