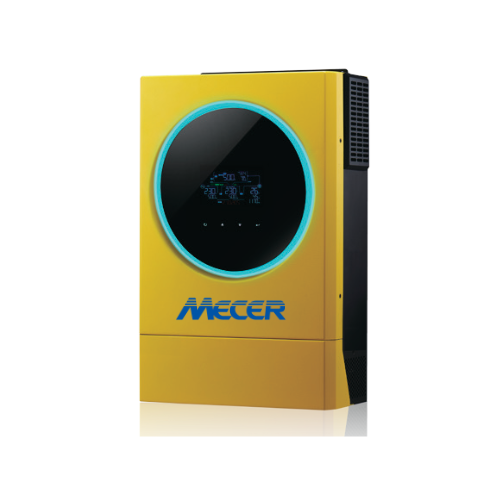

Mecer Infinsolar 3.6Kva Inverter

MODEL: SOL-I-IS-3.6V

PHASE: 1-phase in / 1-phase

MAXIMUM PV INPUT POWER: 5000W

RATED OUTPUT POWER: 3600W

MAXIMUM CHARGING POWER: 5000W

GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage: 360 VDC/500 VDC

Start-up Voltage / Initial Feeding Voltage: 110VDC/120VDC

MPP Voltage Range: 120 VDC ~ 430 VDC

Number of MPP Trackers / Maximum Input Current: 1/18A

GRID OUTPUT (AC)

Nominal Output Voltage: 220/230/240 VAC

Output Voltage Range: 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)

Nominal Output Current: 15.6A

Power Factor: > 0.9

EFFICIENCY

Maximum Conversion Efficiency (DC/AC): 96%

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage / Auto Restart Voltage: 120 – 140 VAC / 180 VAC
Acceptable Input Voltage Range: 90 – 280 VAC or 170 – 280 VAC
Maximum AC Input Current: 40A

PV INPUT (DC)

Maximum DC Voltage: 500 VDC
MPP Voltage Range: 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current:  1 / 18 A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage: 220/230/240 VAC
Output Waveform:  Pure sinewave
Efficiency (DC to AC):  93%

HYBRID OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage:  110VDC / 120 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current:  1 / 18 A

GRID OUTPUT (AC)

Nominal Output Voltage: 220/230/240 VAC
Output Voltage Range: 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)
Nominal Output Current: 15.6A

AC INPUT

AC Start-up Voltage / Auto Restart Voltage: 120 – 140 VAC / 180 VAC
Acceptable Input Voltage Range:  90 – 280 VAC or 170 – 280 VAC
Maximum AC Input Current:  40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage: 220/230/240 VAC
Efficiency (DC to AC): 93%

BATTERY & CHARGER

Nominal DC Voltage: 48 VDC
Maximum Solar Charging Current: 100A
Maximum AC Charging Current: 100A
Maximum Charging Current: 100A

PHYSICAL
Dimension, D x W x H (mm):140 x 295 x 468
Net Weight (kgs):11

INTERFACE
Parallel Function:  Yes, 9 units
Communication Port:  USB/RS232/RS485/Wifi/Dry-contact

ENVIRONMENT
Humidity: 0 ~ 90% RH (Non-condensing)
Operating Temperature:  -10 to 50ºC
