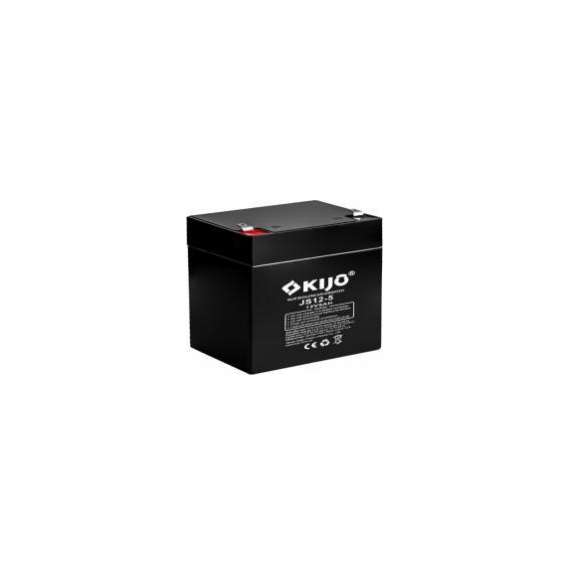

Kijo JS 12V-5aH JS Series lead-acid UPS battery
JS12-5B
Please sign in so that we can notify you about a reply
Nominal Voltage 12V
Nominal Capacity 5.0Ah@20hour-rate to 1.75V per cell @25℃
Design life 5 years
Terminal F1/F2
Approx. Weight Approx1.46kg±3% (3.21lbs±3% )
Container Material ABS(UL94-HB, UL94-V0 Optional) short-circuit current 250A
Internal resistance(Full charged at 25°C: ) 48.0 mΩ
Self discharge 3% of capacity declined per month at 25°C
Nominal Capacity 5.0Ah@20hour-rate to 1.75V per cell @25℃
Design life 5 years
Terminal F1/F2
Approx. Weight Approx1.46kg±3% (3.21lbs±3% )
Container Material ABS(UL94-HB, UL94-V0 Optional) short-circuit current 250A
Internal resistance(Full charged at 25°C: ) 48.0 mΩ
Self discharge 3% of capacity declined per month at 25°C
