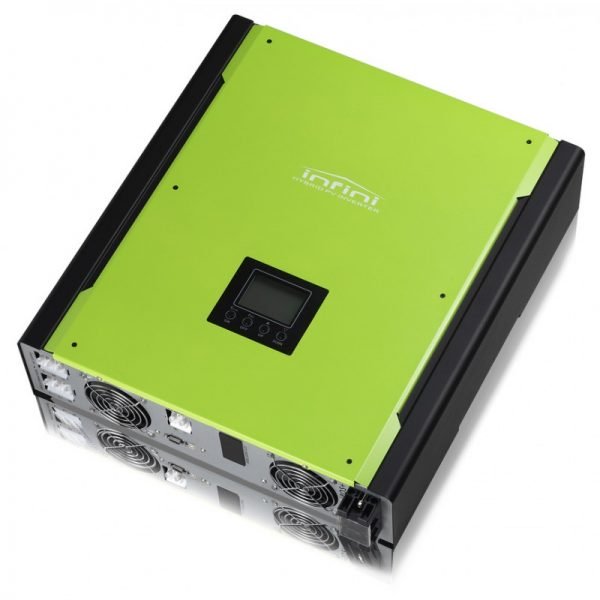

InfiniSolar 2KW/3KW On-Grid Inverter with Energy Storage

• 3KW On-Grid Inverter with Energy Storage
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operations modes: Grid tie, Off grid, and
• grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB, RS-232, Modbus and SNMP
• Monitoring software for real time status display and control

Technical specifications

• RATED OUTPUT POWER: 3000 W
• MAXIMUM CHARGING POWER: 1200 W
• Maximum DC Power: 3200 W
• Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC
• Start-up Voltage / Initial Feeding Voltage: 360 VDC / 500 VDC
• MPP Voltage Range: 360 VDC / 500 VDC
• Number of MPP Trackers / Maximum Input Current: 360 VDC / 500 VDC

GRID OUTPUT (AC)

• Nominal Output Voltage: 208/220/230/240 VAC
• Output Voltage Range: 184 - 264.5 VAC
• Nominal Output Current: 13.1 A
• Power Factor: > 0.99

OFF-GRID OPERATION

• AC INPUT
• AC Start-up Voltage/Auto Restart Voltage: 120 - 140 VAC / 180 VAC
• Acceptable Input Voltage Range: 170 - 280 VAC
• Number of MPP Trackers / Maximum Input Current: 25A
• PV INPUT (DC)
• Maximum DC Voltage: 500 VDC
• MPP Voltage Range: 250 VDC ~ 450 VDC
• Maximum Input Current: 1 / 1 x 13 A

BATTERY MODE OUTPUT (AC)

• Nominal Output Voltage: 208/220/230/240 VAC
• Output Waveform: Pure Sinewave
• Efficiency (DC to AC): 93%

HYBRID OPERATION
PV INPUT (DC)

• Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC
• Start-up Voltage / Initial Feeding Voltage: 116 VDC / 150 VDC
• MPP Voltage Range: 250 VDC ~ 450 VDC
• Maximum Input Current: 1 / 1 x 13 A

GRID OUTPUT (AC)

• Nominal Output Voltage: 208/220/230/240 VAC
• Output Voltage Range: 184 - 264.5 VAC
• Nominal Output Current: 13.1 A*

AC INPUT

• AC Start-up Voltage/Auto Restart Voltage: 120 - 140 VAC / 180 VAC
• Acceptable Input Voltage Range: 170 - 280 VAC per phase
• Maximum AC Input Current: 25A

BATTERY MODE OUTPUT (AC)

• Nominal Output Voltage: 208/220/230/240 VAC
• Efficiency (DC to AC): 93%

BATTERY & CHARGER

• Nominal DC Voltage: 48 VDC
• Maximum Charging Current: 25A

INTERFACE

• Communication Port: RS-232/USB
• Intelligent Slot: Optional SNMP, Modbus, and AS-400 cards available
