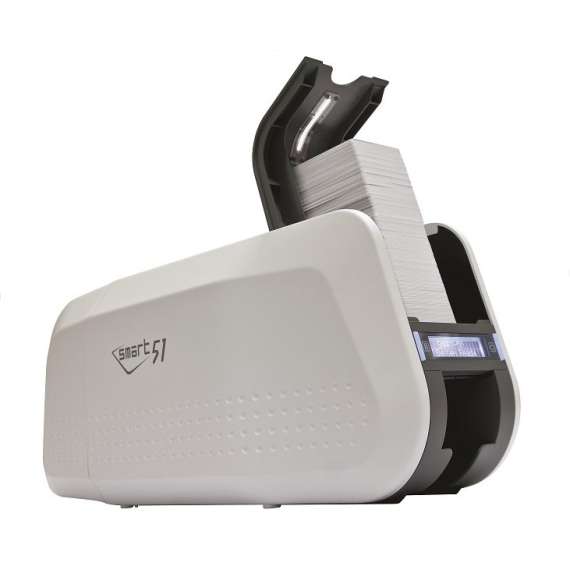

IDP SMART-51L Laminating ID Card Printer

The IDP SMART-51L is a professional dual-sided ID card printer with integrated lamination for enhanced card durability and security. It delivers high-quality colour and monochrome printing with edge-to-edge output, making it ideal for secure ID issuance such as staff cards, student IDs, and membership badges.

Specifications

• Printing technology direct dye-sublimation
• Print modes single-sided and dual-sided printing
• Print resolution 300 dpi (colour & mono), up to 600 dpi and 1200 dpi (mono only)
• Print area edge-to-edge printing
• Print speed up to 5 sec/card (mono), up to 17 sec/card (YMCKO), up to 22 sec/card (YMCKK)
• Lamination support single and dual-sided lamination
• Lamination speed up to 22 sec/card (YMCK with single lamination), up to 53 sec/card (YMCKK one-by-one)
• Laminating film compatibility clear and holographic film (0.6 mil, 1.0 mil)
• Card types supported PVC, PET, composite PVC
• Card size ISO CR80, ISO CR79 (optional factory configuration)
• Card thickness range 0.38 mm to 1.0 mm (15–40 mil)
• Input hopper capacity up to 100 cards (200 with cover open)
• Output hopper capacity up to 40 front cards, 100 rear cards (optional stacker)
• Memory 64MB RAM
• Display 2-line LCD with LED control buttons
• Connectivity USB, optional Ethernet, optional Wi-Fi
• Operating systems Windows 7/8/10, macOS, Linux
• Encoding options magnetic stripe (ISO 7811), contact smart card (ISO 7816), contactless smart card (ISO 14443, MIFARE, DESFire, NFC, iCLASS, FeliCa)
• Security features holographic lamination, UV printing support, optional encoding modules
• Power supply AC 100–220V, 50–60Hz
• Power consumption approx. 96W
• Operating temperature 15°C to 35°C
• Humidity range 35% to 70%
• Dimensions 165 x 675 x 210 mm
• Weight 8.8 kg
• Certifications CB, CE, FCC, KC, CCC
• Applications ID cards, staff badges, student IDs, membership cards, visitor passes, bank card personalization, conference badges
