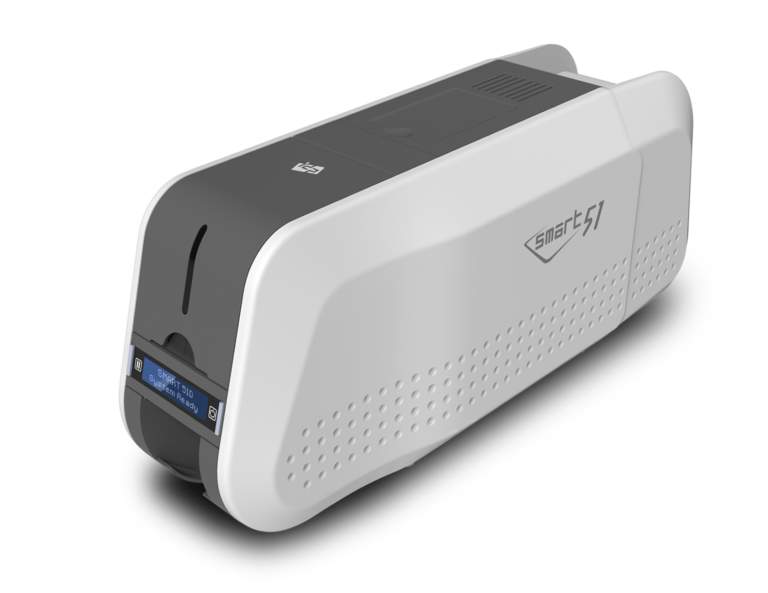

IDP SMART 51D Dual Sided ID Card Printer

The IDP SMART-51D Dual Sided ID Card Printer is a professional-grade card printing solution designed for high-quality, secure, and efficient ID card production. Supporting single and dual-sided printing, it delivers sharp colour output, fast print speeds, and multiple encoding options, making it ideal for organizations that require secure identification and personalization of cards.

Specifications

 • Printing technology: Direct dye-sublimation
 • Print mode: Single-sided and dual-sided printing
 • Print resolution: 300 dpi (colour & mono), up to 600/1200 dpi (mono only)
 • Print area: Edge-to-edge printing
 • Print speed:
  • Monochrome: 5 seconds per card (up to 720 cards/hour)
  • YMCKO: up to 17 seconds per card (212 cards/hour)
  • YMCKOK: up to 22 seconds per card (164 cards/hour)
 • Card compatibility: ISO CR80 / CR79
 • Card thickness: 0.38 mm to 1.0 mm
 • Card materials: PVC, PET, composite PVC
 • Card feeding: Automatic input hopper
 • Input capacity: 100 cards (200 with open cover)
 • Output capacity: 40 front / 100 rear (optional stacker)
 • Supported card types: Standard PVC, transparent cards
 • Display: 2-line LCD with LED control buttons
 • Memory: 64 MB RAM
 • Connectivity: USB standard, optional Ethernet and Wi-Fi
 • Operating systems: Windows 7/8/10, macOS, Linux
 • Encoding options: Magnetic stripe, contact chip, contactless (MIFARE, DESFire, NFC, iCLASS)
 • Supported standards: ISO 7811, ISO 7816, ISO 14443, ISO 18092
 • Power supply: AC 100–240V, 50–60Hz (free voltage)
 • Power consumption: 48W
 • Operating temperature: 15°C to 35°C
 • Operating humidity: 35% to 70%
 • Dimensions: 165 x 498 x 210 mm
 • Weight: 5.2 kg
 • Security features: Optional UV printing, secure encoding modules
 • Upgrade options: Magnetic encoder, contact/contactless encoder, Ethernet, Wi-Fi, flipper module, laminator
 • Ideal for: ID cards, staff badges, student IDs, membership cards, visitor passes, bank cards, loyalty cards, conference passes
 • Certifications: CE, FCC, CB, KC, CCC
 • Key advantage: High-speed secure dual-sided ID card printing with flexible upgrade options and professional output quality
