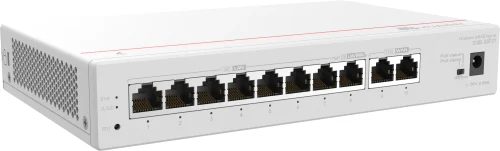

Huawei S380-S8T2T Network Gateway Router

Dimensions without packaging (H x W x D) [mm(in.)]:
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 165.2 mm (1.72 in. x 17.4 in. x 6.5 in.)

Dimensions with packaging (H x W x D) [mm(in.)]:90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
Chassis height [U]:1 U
Chassis material:Metal
Weight without packaging [kg(lb)]:1.6 kg (3.53 lb)
Weight with packaging [kg(lb)]:2.1 kg (4.63 lb)
Typical power consumption [W]:10.4 W
Typical heat dissipation [BTU/hour]:35.5 BTU/hour
Maximum power consumption [W]:10.55 W
Maximum heat dissipation [BTU/hour]:36 BTU/hour
Static power consumption [W]:5.82 W
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans):< 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans): < 20
Number of card slots:0
Number of power slots:0
Number of fans modules:0
Switching capacity:To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate:To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Uplink ports:2 x GE WAN
Downlink ports:8 x GE LAN
Redundant power supply:Not supported
Long-term operating temperature [°C(°F)]:0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]:–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]:5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]:0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]:0-5000 m (0-16404 ft.)
Power supply mode:AC built-in
Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]:0.8 A
Memory DDR4: 512 MB
Flash memory NAND Flash: 512 MB
Console port:Not supported
Eth Management port:LAN port
USB:Not supported
RTC:Not supported
RPS input:Not supported
Service port surge protection [kV] Common mode: ±4 kV
Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof):IP20
Types of fans:None
Heat dissipation mode:Natural heat dissipation
PoE:Not supported
