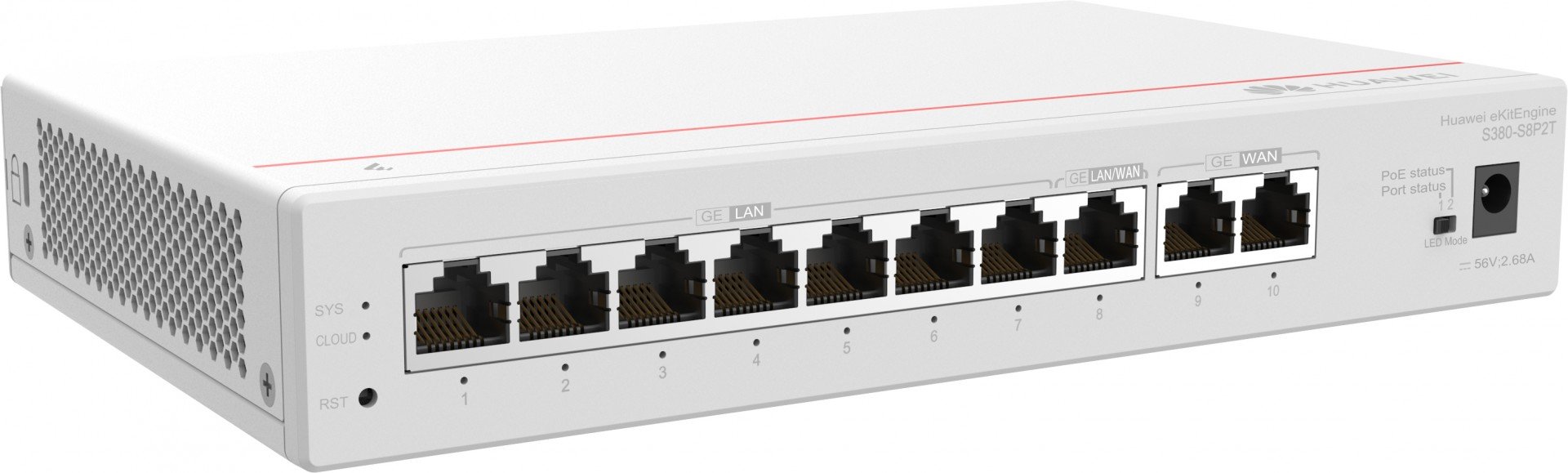

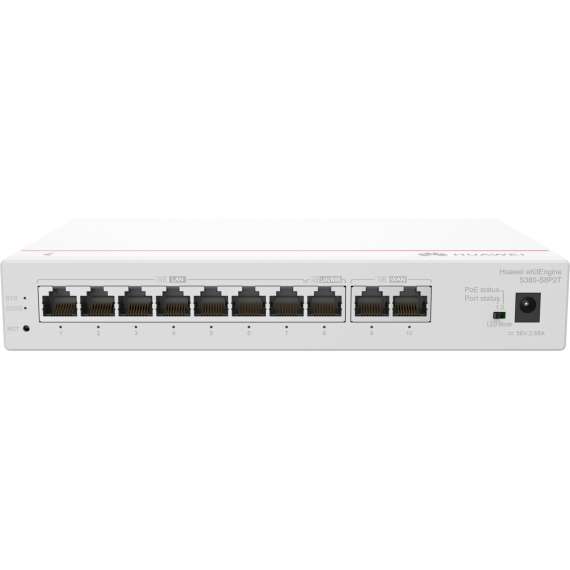

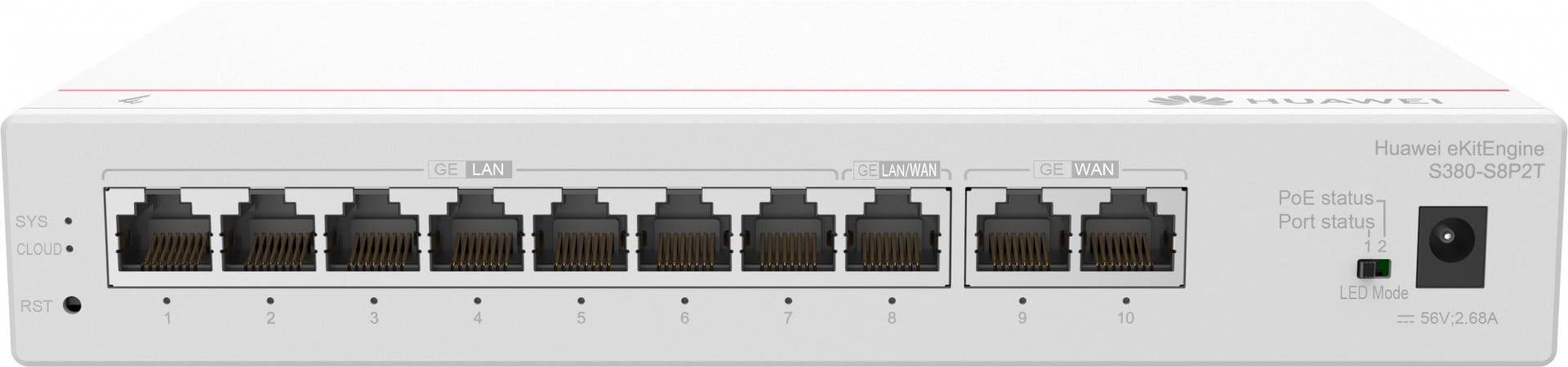

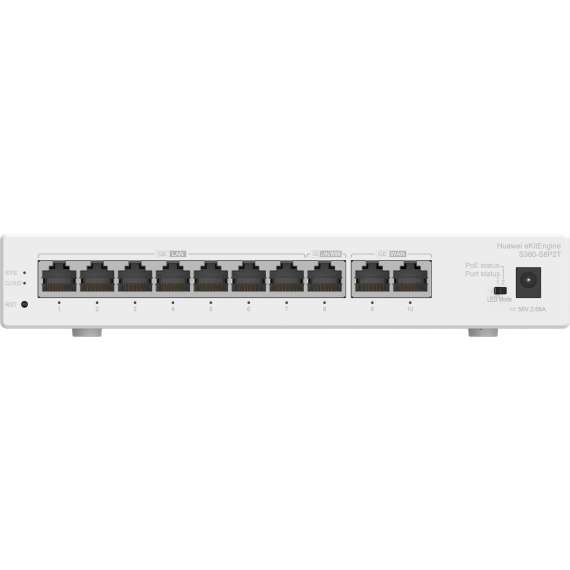

Huawei S380-S8P2T Router
S380-S8P2T
BrandHuawei
ConditionNew
ConnectivityEthernet Router
Device MountingRack Mount
Number of Ports8 ports
Warranty IssuerManufacturer
Please sign in so that we can notify you about a reply
The Huawei S380-S8P2T is a compact enterprise-grade Gigabit PoE router designed for small offices and branch networks. It integrates routing, switching, and PoE capabilities into a single device, delivering stable wired performance, efficient power delivery, and quiet fanless operation for reliable business connectivity.
Specifications
- Model: S380-S8P2T
- Product Type: Gigabit PoE router
- Series: Huawei S380
- Dimensions (Basic): 35.0 mm × 210.0 mm × 130.0 mm
- Dimensions (Maximum): 35.0 mm × 210.0 mm × 136.3 mm
- Dimensions (With Packaging): 150.0 mm × 275.0 mm × 200.0 mm
- Chassis Height: 0.8U
- Chassis Material: Metal
- Weight (Without Packaging): 1.5 kg
- Weight (With Packaging): 1.8 kg
- Typical Power Consumption: 12.4 W
- Maximum Power Consumption: 145.8 W (PoE load 124 W)
- Static Power Consumption: 7.53 W
- Heat Dissipation (Typical): 42.3 BTU/hour
- Heat Dissipation (Maximum): 497.5 BTU/hour
- Noise Level: Silent operation (<30 dB acoustic power, <20 dB acoustic pressure)
- Uplink Ports: 2 × GE WAN ports
- Downlink Ports: 8 × GE LAN ports (PoE+)
- Memory (RAM): 512 MB DDR4
- Flash Memory: 512 MB NAND Flash
- Console Port: Not supported
- Management Port: LAN port
- Redundant Power Supply: Not supported
- Operating Temperature: 0°C to 40°C (0–1800 m altitude)
- Storage Temperature: –40°C to +70°C
- Operating Humidity: 5% to 95% (non-condensing)
- Operating Altitude: 0–5000 m
- Power Supply Mode: External power adapter
- Input Voltage: 100–240 V AC, 50/60 Hz
- Output Voltage: 56 V DC
- Input Voltage Range: 90–290 V AC, 47–63 Hz
- Maximum Input Current: 2.68 A
- Surge Protection (Service Ports): ±4 kV common mode
- Surge Protection (Power Supply): ±6 kV differential mode, ±6 kV common mode
- Cooling System: Natural heat dissipation (fanless design)
- Ingress Protection: IP20
- PoE Support: Yes (PoE+)
- Working Modes: Routing, switching, and PoE integrated operation
Condition
- New
Device Mounting
- Rack Mount
Number of Ports
- 8 ports
Router Type
Gateway
Warranty Issuer
- Manufacturer
