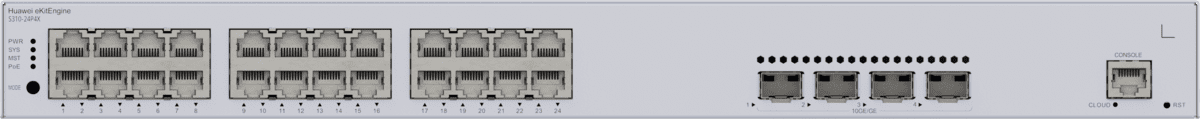

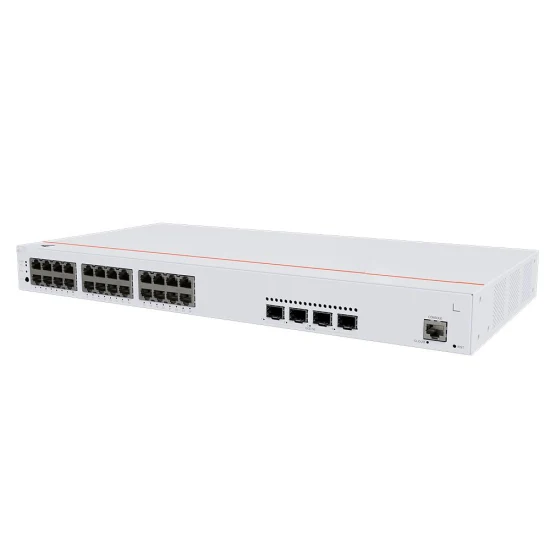

Huawei S310-24P4X 24 port PoE+ Switch

The Huawei CloudEngine S310-24P4X is a high-performance 24-port Gigabit PoE+ switch designed for enterprise access networks. It delivers reliable wired connectivity, high-speed 10GE uplink performance, and efficient PoE power delivery, making it ideal for modern business, campus, and enterprise network deployments.

Specifications

• Model: S310-24P4X
• Product Type: 24-port Gigabit Ethernet switch (PoE+)
• Series: Huawei CloudEngine S310
• Dimensions (Basic): 43.6 mm × 442.0 mm × 220.0 mm
• Dimensions (Maximum): 43.6 mm × 442.0 mm × 227.0 mm
• Dimensions (With Packaging): 90.0 mm × 550.0 mm × 360.0 mm
• Chassis Height: 1U
• Chassis Material: Metal
• Weight (Without Packaging): 2.92 kg
• Weight (With Packaging): 3.79 kg
• Typical Power Consumption: 37.12 W
• Maximum Power Consumption: 44.35 W (non-PoE), 485.91 W (full PoE load, 400 W PoE budget)
• Static Power Consumption: 27.07 W
• Heat Dissipation (Typical): 126.65 BTU/hour
• Heat Dissipation (Maximum): 151.32 BTU/hour (no PoE), 1657.92 BTU/hour (full PoE load)
• Noise Level: 49.3 dB(A) acoustic power, 37.3 dB(A) acoustic pressure
• Uplink Ports: 4 × 10GE SFP+ ports
• Downlink Ports: 24 × 10/100/1000BASE-T ports (PoE+)
• Memory: 2 GB RAM
• Flash Memory: 1 GB physical storage
• Console Port: RJ45
• Redundant Power Supply: Not supported
• Operating Temperature: –5°C to +50°C (0–1800 m altitude)
• Storage Temperature: –40°C to +70°C
• Operating Humidity: 5% to 95% (non-condensing)
• Operating Altitude: 0–5000 m
• Power Supply Mode: Built-in AC power supply
• Input Voltage (AC): 100–240 V AC, 50/60 Hz
• Input Voltage Range (AC): 90–290 V AC, 45–65 Hz
• Maximum Input Current: 6 A
• Surge Protection (Service Ports): ±7 kV common mode
• Surge Protection (Power Supply): ±6 kV differential mode, ±6 kV common mode
• Cooling System: Air cooling with intelligent fan speed control
• Fan System: Built-in dual fans
• Airflow Direction: Left/front air intake, right air exhaust
• Ingress Protection: IP20
• PoE Support: Yes (400 W PoE budget)
• Working Modes: Standard enterprise switching with PoE+ support
