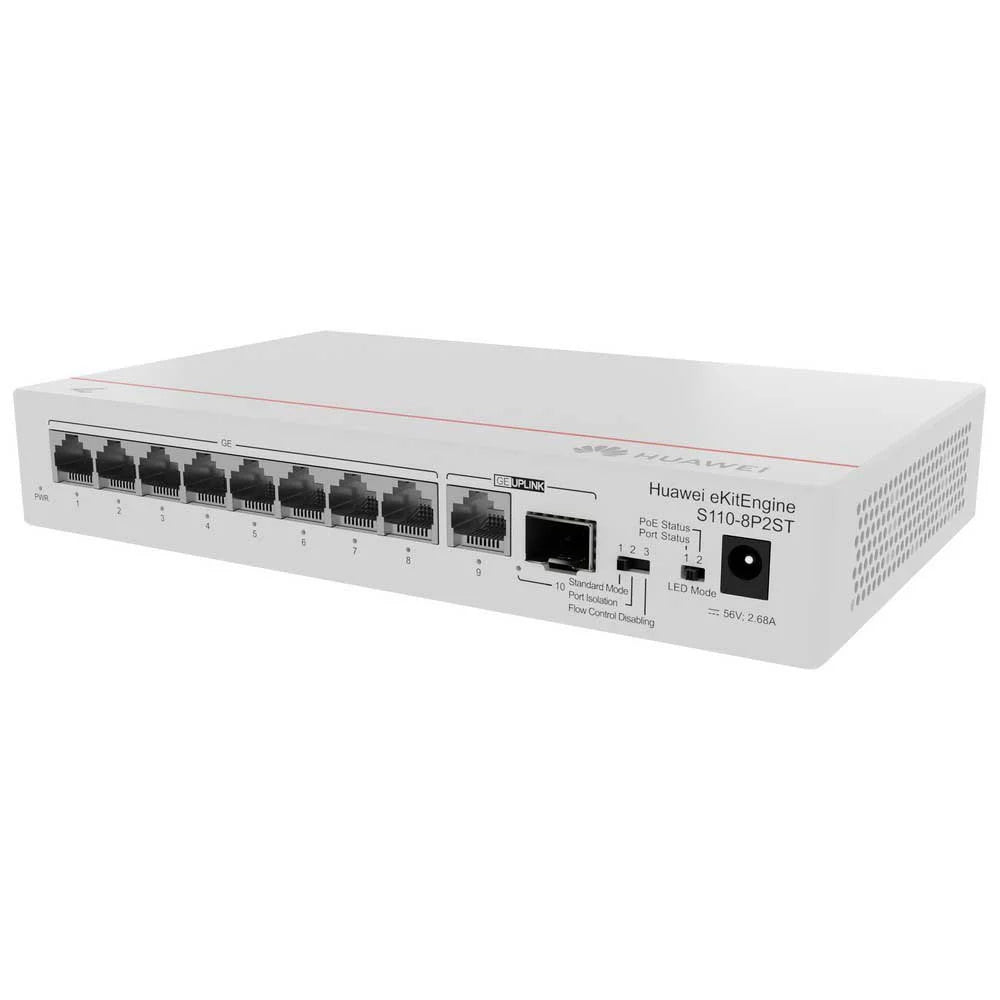

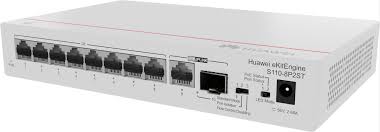

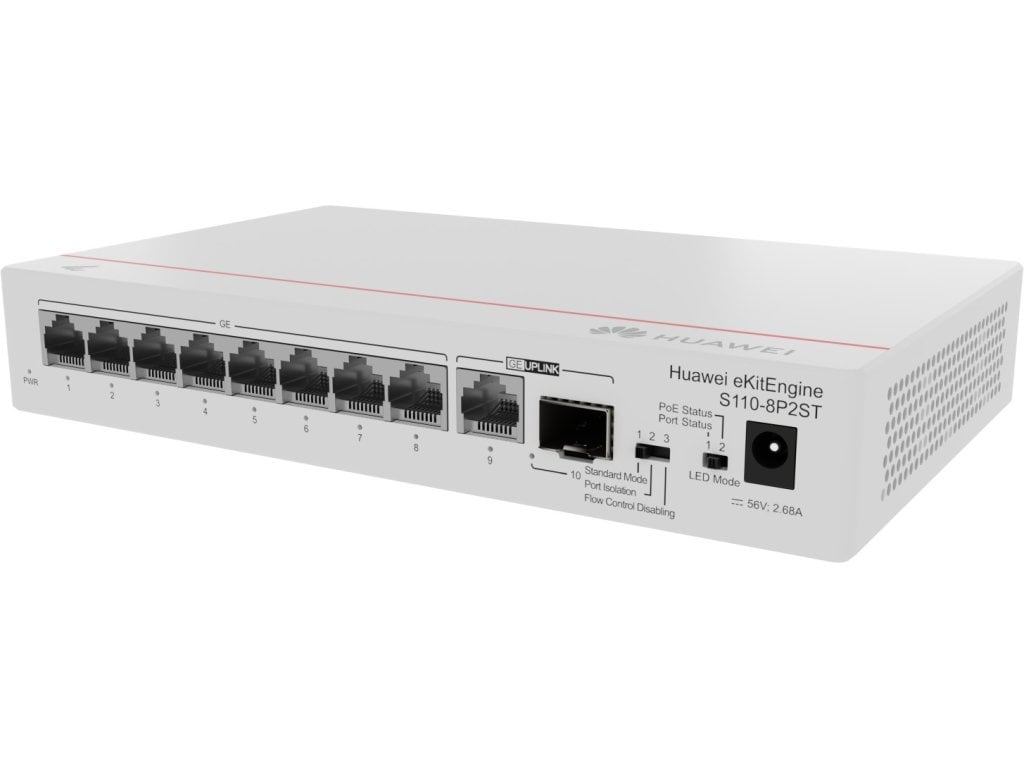

Huawei S110-8P2ST 8 port Switch

Dimensions without packaging (H x W x D) [mm(in.)]:
Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)

Dimensions with packaging (H x W x D) [mm(in.)]:150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.)
Chassis height [U]:0.8 U
Chassis material:PC+ABS
Weight without packaging [kg(lb)]:1.11 kg (2.45 lb)
Weight with packaging [kg(lb)]:1.46 kg (3.22 lb)
Typical power consumption [W]:11 W
Typical heat dissipation [BTU/hour]:37.53 BTU/hour
Maximum power consumption[W]:
Without PoE: 11 W
Full PoE load: 155 W (PoE: 124 W)

Maximum heat dissipation [BTU/hour]:
Without PoE: 37.53
Full PoE load: 528.88
Static power consumption [W]:4 W

Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans):< 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans):< 20
Number of card slots:0
Number of power slots:0
Number of fans modules:0
Switching capacity:To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate:To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Uplink ports:1 x GE SFP port and 1 x 10/100/1000BASE-T port
Downlink ports:8 x 10/100/1000BASE-T ports (124 W PoE+)
Working mode:
Standard mode
Port isolation
Flow control disabling
MAC address entry:2K
Redundant power supply:Not supported
Long-term operating temperature [°C(°F)]:0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]:–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]:5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]:0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]:0-5000 m (0-16404 ft.)
Power supply mode:Power adapter
Rated input voltage :[V]
Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC

Input voltage range [V] Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz
Maximum input current [A]:2.68 A
Console port:Not supported
Eth Management port:Not supported
USB:Not supported
RTC:Not supported
RPS input:Not supported
Service port surge protection [kV]:Common mode: ±4 kV
Power supply surge protection [kV]:Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof):IP20
Types of fans:None
Heat dissipation mode:Natural heat dissipation
PoE:Supported
