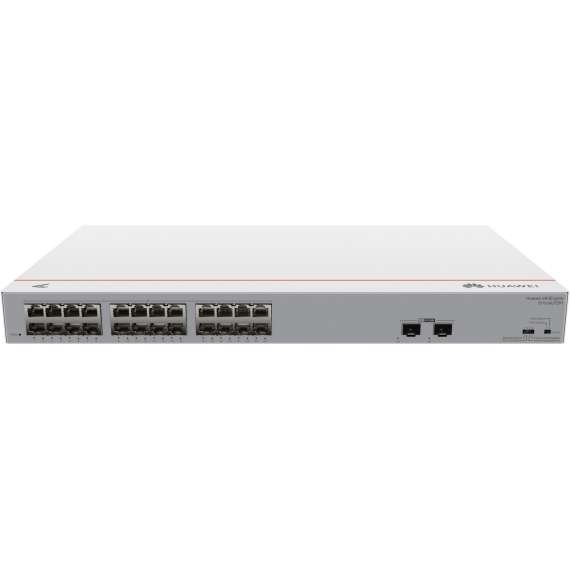

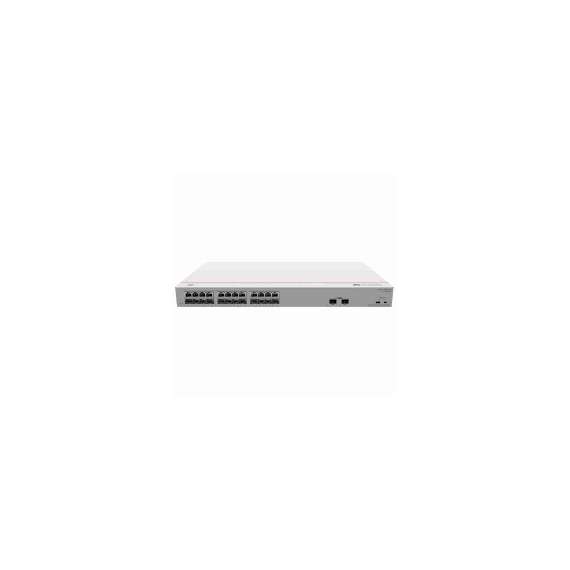

Huawei S110-24LP2SR 24 ports Switch

The Huawei S110-24LP2SR is a 24-port Gigabit Ethernet PoE switch designed for enterprise and campus access networks. It delivers reliable wired connectivity, PoE support for powered devices, and silent fanless operation, making it ideal for offices, schools, and business environments requiring stable and efficient network distribution.

Specifications

• Model: S110-24LP2SR
• Product Type: 24-port Gigabit Ethernet switch (PoE supported)
• Dimensions (Basic): 43.6 mm × 442.0 mm × 260.0 mm
• Dimensions (Maximum): 43.6 mm × 442.0 mm × 267.0 mm
• Dimensions (With Packaging): 90.0 mm × 555.0 mm × 400.0 mm
• Chassis Height: 1U
• Chassis Material: Metal
• Weight (Without Packaging): 3.2 kg
• Weight (With Packaging): 3.7 kg
• Typical Power Consumption: 24 W
• Maximum Power Consumption: 24 W (non-PoE), 165 W (full PoE load, 124 W PoE budget)
• Static Power Consumption: 13 W
• Heat Dissipation (Typical): 81.89 BTU/hour
• Heat Dissipation (Maximum): 81.89 BTU/hour (no PoE), 563 BTU/hour (full PoE load)
• Noise Level: Silent operation (<30 dB acoustic power, <20 dB acoustic pressure)
• Uplink Ports: 2 × GE SFP ports
• Downlink Ports: 24 × 10/100/1000BASE-T ports (PoE+)
• MAC Address Capacity: 8K entries
• Redundant Power Supply: Not supported
• Operating Temperature: 0°C to 40°C (0–1800 m altitude)
• Storage Temperature: –40°C to +70°C
• Operating Humidity: 5% to 95% (non-condensing)
• Operating Altitude: 0–5000 m
• Power Supply Mode: Built-in AC power supply
• Input Voltage: 100–240 V AC, 50/60 Hz
• Input Voltage Range: 90–300 V AC, 47–63 Hz
• Maximum Input Current: 3 A
• Surge Protection (Service Ports): ±4 kV common mode
• Surge Protection (Power Supply): ±6 kV differential mode, ±6 kV common mode
• Ingress Protection: IP20
• Cooling System: Natural heat dissipation (fanless design)
• PoE Support: Yes (PoE+ on all downlink ports)
• Working Modes: Standard mode, port isolation, uplink aggregation, flow control disabling
